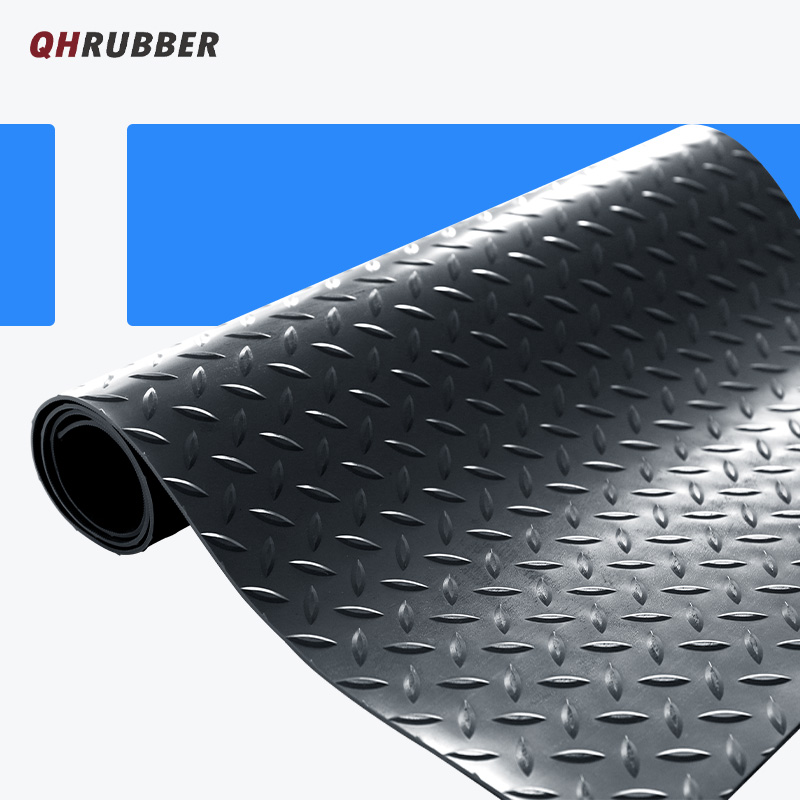

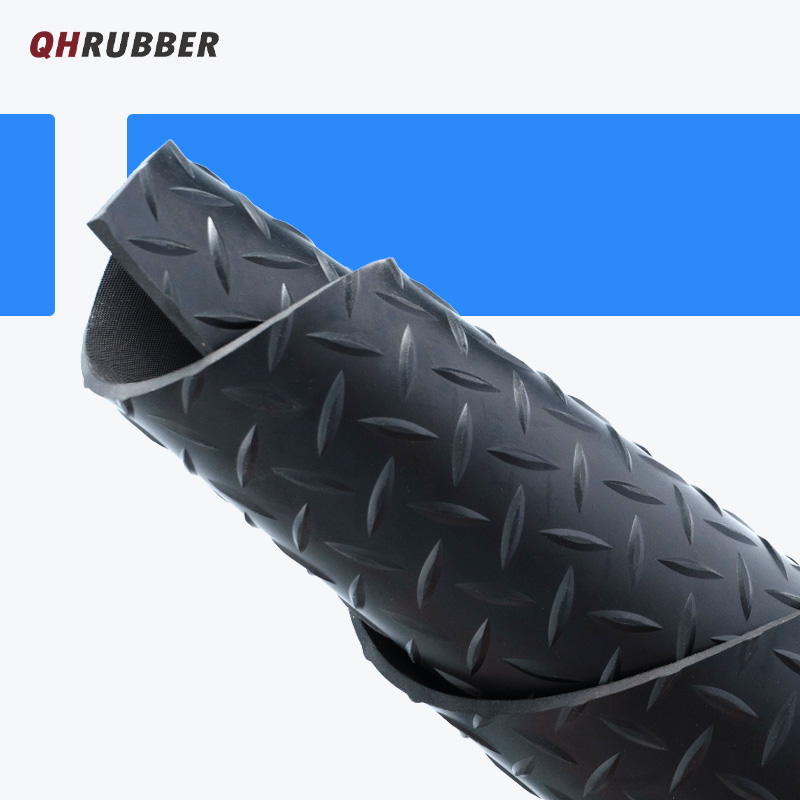

Diamond Design Mat which has a Non-Skid surface one side and a fine cloth impression pattern on the other side. The flooring with continuous Checkered field pattern is designed for excellent traction and easy cleaning. Non-staining, non-discolouring mat is used for both indoor and outdoor purpose. Diamond mat pattern is ideal for ramps, trailers, golf club bridge aprons, marine areas, building access points, wheeled vehicles, trolleys, etc. Being fully weather proof, it can be used either indoors or outdoors. Diamond pattern matting is manufactured from top quality rubber compounds which give high non-tear qualities, offering exceptional wear and grip characteristics. These mats are easily cleaned by reverse rolling or wiping.
Qihang Diamond Plate Rubber Mat (commonly recognized in global industrial markets as diamond tread runner, embossed diamond design matting, or non-slip steel plate texture sheet) is an elite industrial-grade flooring solution engineered for high-traffic protective environments. Featuring a classic, deeply embossed diamond/willow leaf surface pattern, this heavy-duty mat ensures outstanding multi-directional traction, high aesthetic appeal, and extreme slip resistance under wet, oily, or dry conditions.

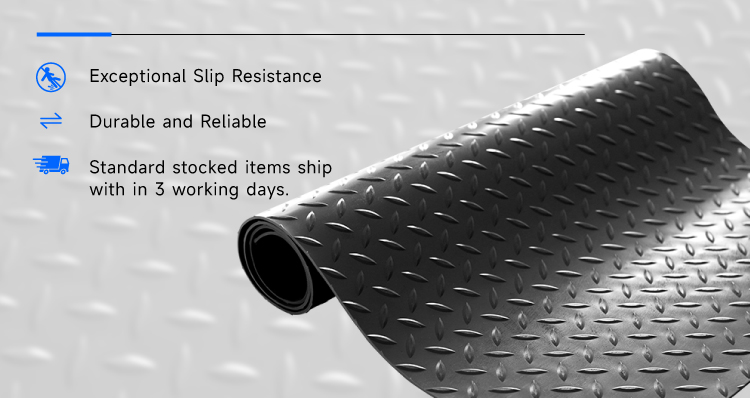

Figure 1: Qihang High-Traction Diamond Pattern Rubber Matting with Deep Embossed Tread
Manufactured using advanced continuous vulcanization Rotocure machinery, Tianjin Qihang guarantees optimal gauge consistency, high tensile toughness, and a textured cloth impression on the bottom to maximize coefficient of friction against subfloors. We specialize in synthesizing our enterprise-level diamond mats across premium chemical polymer bases—including SBR/NR blends, oil-resistant Nitrile (NBR), weathering EPDM, and flame-retardant Neoprene (CR)—to secure commercial warehouse floors, fitness center heavy-zones, and transit corridors worldwide.
Qihang's diamond plate runner mats are compounded to deliver elite physical endurance, completely eliminating the cracking and tearing drawbacks of low-grade recycled alternatives:
We tailor our industrial diamond mat dimensions, hardness ratings, and polymer configurations to integrate smoothly into international bulk supply chains and project tenders:
| Item Code | Available Colors | Thickness Range | Specific Gravity | Hardness (Shore A) | Tensile Strength | Elongation at Break | Base Polymer Spec | Ideal Engineering Scene |
|---|---|---|---|---|---|---|---|---|
| QH-DM-01 | Black, Grey, Red, Green, Blue | 3.0 mm - 6.0 mm | 1.50 g/cm³ | 65 +/- 5 | 3.5 MPa (35 Kg/cm²) | 250% | NR / SBR Blend | Commercial garage workshops, industrial walkways, walkways, basement storehouses, and toolbox drawer liners. |
| QH-DM-02 | Black | 3.0 mm - 5.0 mm | 1.40 g/cm³ | 70 +/- 5 | 5.0 MPa (50 Kg/cm²) | 300% | Nitrile (NBR) | Petrochemical refinement facilities, auto mechanic service bays, CNC machining centers, and oil-heavy workshops. |
| QH-DM-03 | Black, Dark Grey | 4.0 mm - 8.0 mm | 1.30 g/cm³ | 65 +/- 5 | 8.0 MPa (80 Kg/cm²) | 300% | EPDM Weatherproof | Open-air marine shipping ports, chemical processing walkways, cold storage platforms, and heavy outdoor public plazas. |
| QH-DM-04 | Black | 3.0 mm / 5.0 mm | 1.55 g/cm³ | 70 +/- 5 | 5.0 MPa (50 Kg/cm²) | 250% | Neoprene (CR) | Mass transit rolling stock, maritime engine compartments, fire stations, and hazard-mitigation military depots. |
*Customized OEM Options: Qihang accommodates custom widths (up to 2 meters wide), integrated multi-ply textile fabric reinforcement (polyester or nylon cord embedding), custom back-printing branding, and specialized packaging boxes for direct retail distribution.
Thanks to its robust, eye-catching design and industrial strength, our diamond plate rubber sheet is deployed widely across high-demand sectors:

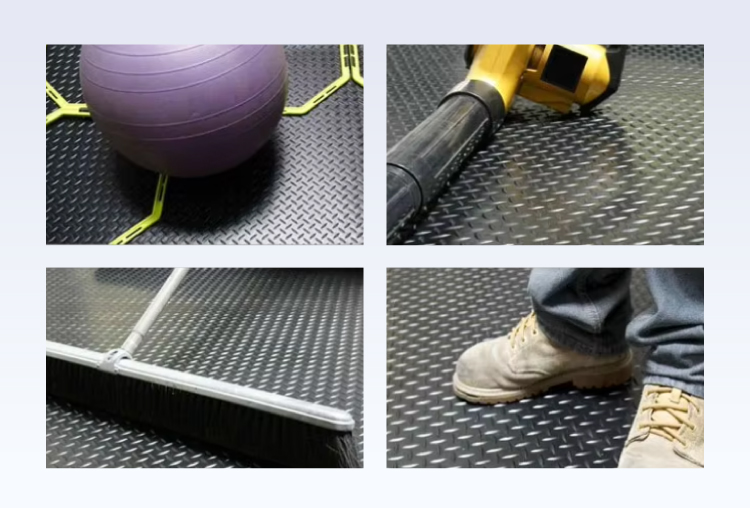

Figure 2: Real-world Installation of Qihang Diamond Tread Sheet in Commercial Logistics and Workshop Environments
Protects structural subfloors against brake fluid leaks, engine oil spills, and high tire friction torque while upgrading the aesthetic profile of residential or professional auto maintenance garages.
Placed beneath commercial gym weight benches, smith machines, and power cages to isolate high structural concrete drop impact, lower ambient acoustic vibration, and prevent gym equipment from shifting.
Establishes highly defined, low-slip walkways for assembly workers and materials packers alongside heavy distribution center packaging lines, safeguarding operators from sleek concrete surfaces.
Acts as non-skid flooring for logistics delivery vans, heavy-duty utility equipment trailers, tool service trucks, and machine platform steps to support stable standing conditions.
To secure smooth, wave-free surface coverage and guarantee maximum service longevity for your B2B wholesale diamond rubber flooring rolls, please implement our official factory guidelines:
Due to the immense compression forces of Rotocure manufacturing extrusion, all rolls store minor residual core-tension. Unroll your diamond runner sheets completely flat in a room-temperature zone (ideally above 18°C) for 24 hours prior to permanent laying. This permits the elastomer to thoroughly relax and return to its engineered dimensional state, preventing post-fitting buckles.
The target substrate must be structurally sound, completely level, clean of loose dirt, and thoroughly free of wet oils. For flexible, temporary deployments (such as workshop toolbox tops or seasonal walkways), secure seams tightly via heavy-duty double-sided industrial floor tapes. For long-term heavy-traffic assembly areas or commercial garage zones, use a full spread of moisture-curing polyurethane floor adhesive. Roll the entire matting zone with a 45kg structural floor roller, pressing from the middle outwards to eliminate air pockets.
Because the diamond studs have smooth, rounded steel-tread geometric shapes, dirt is easily dislodged. Maintenance simply involves a heavy stiff brush broom or industrial dry vacuum. For grease or mud removal, hose down thoroughly or deploy an automatic floor scrubber equipped with a pH-neutral commercial detergent solution. **Technical Advisory:** Unless you have specifically contracted our premium oil-proof NBR diamond compounds, prevent standard NR/SBR mats from continuous pooling of petroleum solvents or high-strength fuel mixtures to preserve long-term structural bonding.
By sourcing directly from Tianjin Qihang's direct-export manufacturing hub, international construction tender contractors and industrial distributors obtain competitive wholesale factory tier-pricing. Beyond our premium steel-plate diamond sheets, we supply massive volume output for automated industrial rubber sheets and architectural-grade anti-slip rubber mats fully matching strict international import parameters:
Q1: What is the factory Minimum Order Quantity (MOQ) for Qihang Diamond Tread Rubber Sheets?
A: For our standard commercial thickness profiles (3mm and 5mm) in deep Midnight Black, the B2B MOQ begins flexibly at 10 to 20 rolls. For tailored Pantone coloration (such as Safety Yellow borders, bright Industrial Green) or custom chemical matrix adjustment (such as pure EPDM or Nitrile compounds), the factory MOQ adapts to 50–100 rolls depending on specific width requirements.
Q2: How does a diamond plate mat compare to a coin pattern mat or a checkered mat?
A: Each texture solves unique mechanical goals. Our rubber coin mats provide high omnidirectional traction and an ultra-modern aesthetic, perfect for public transit spaces and luxury residential garage showrooms. The 5-bar checkered mat offers intense directional drainage and scraping capabilities, ideal for open-air muddy ramps and logistics truck beds. Meanwhile, the diamond mat delivers outstanding multi-directional 360-degree grip and a clean industrial aesthetic, making it the premier choice for fitness center weight zones and high-traffic heavy factory aisles.
Q3: Can Qihang factory provide formal environmental compliance certification for international tenders?
A: Yes, absolutely. We enforce strict ecological controls over all raw elastomer chemical inputs. Qihang periodically routes fresh production batches to accredited international testing labs (such as SGS or TÜV) to confirm complete adherence to European **REACH (SVHC standards)** and **RoHS** import regulations, guaranteeing zero dangerous off-gassing for indoor fitness centers.
Q4: What is your standard B2B production lead time for a full container load?
A: For a standard 20-foot Full Container Load (FCL) containing our standard stocking sizing configurations, our manufacturing lead time runs 15 to 25 calendar days post-deposit confirmation. Custom inner nylon cloth insertion or specialized retail branding packaging shifts the window by roughly 5–7 working days. We provide real-time factory image and video progress tracking for full assurance.
Are you looking for an ISO-certified, dependable rubber manufacturing hub to secure your industrial wholesale inventory or supply a massive infrastructure project? Qihang's direct factory technical consultants are standing by to coordinate rapid material pricing, custom chemical formulating, and global logistical clearance.
→ Direct Enterprise Email: evan@qihangrubber.com
Or submit our online inquiry webform to secure your free pre-production diamond plate testing sample!
