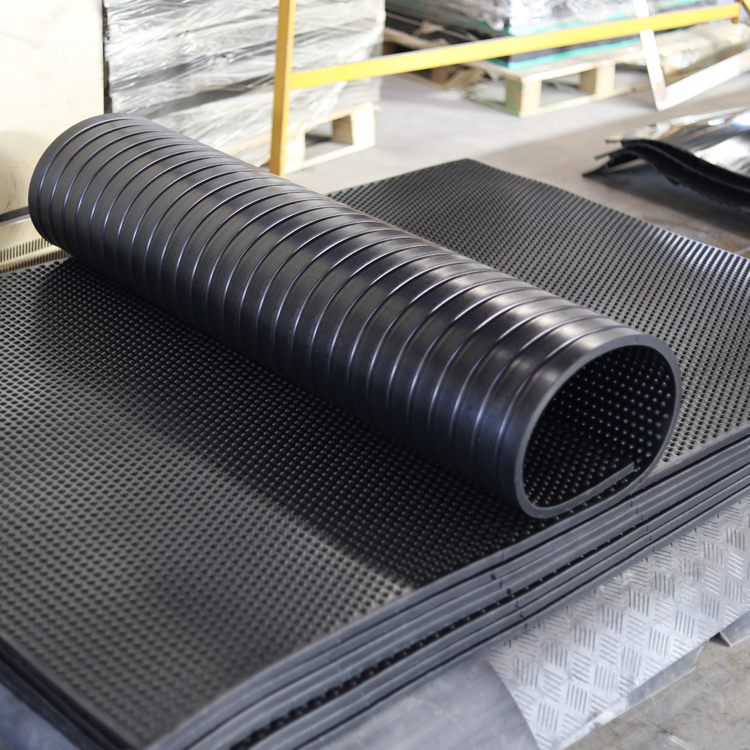

Cow/Horse mat

Materials Engineering & The Physics of Livestock Comfort

At Qihang Rubber, we recognize that agricultural flooring is not just a surface—it is a critical factor in animal welfare and overall farm profitability. Standard commercial rubber tiles often fail on dairy farms and equestrian centers because they either absorb moisture or degrade under continuous mechanical stress. Our abrasion-resistant livestock rubber matting is engineered through high-temperature, high-pressure thermodynamic vulcanization using a proprietary blend of Premium Styrene-Butadiene Rubber (SBR) and Natural Rubber (NR).

This specific molecular cross-linking profile delivers a highly resilient "memory effect." When a 700kg dairy cow or an active thoroughbred horse stands on the mat, the elastomer undergoes local elastic deformation, acting as a structural shock absorber that dampens the reflective force on the animal’s skeletal structure. As soon as the animal moves, the rubber matrix immediately rebounds to its exact nominal thickness. By isolating the animals from freezing, damp concrete floors, our dairy cow bedding liners provide superior thermal insulation, which has been scientifically proven to extend herd lying times, optimize blood circulation to the udder, and directly increase daily milk yields.

Versatile Industrial & Agricultural Applications

Our industrial animal rubber liners are highly versatile assets deployed across global agricultural, veterinary, and sports infrastructure:

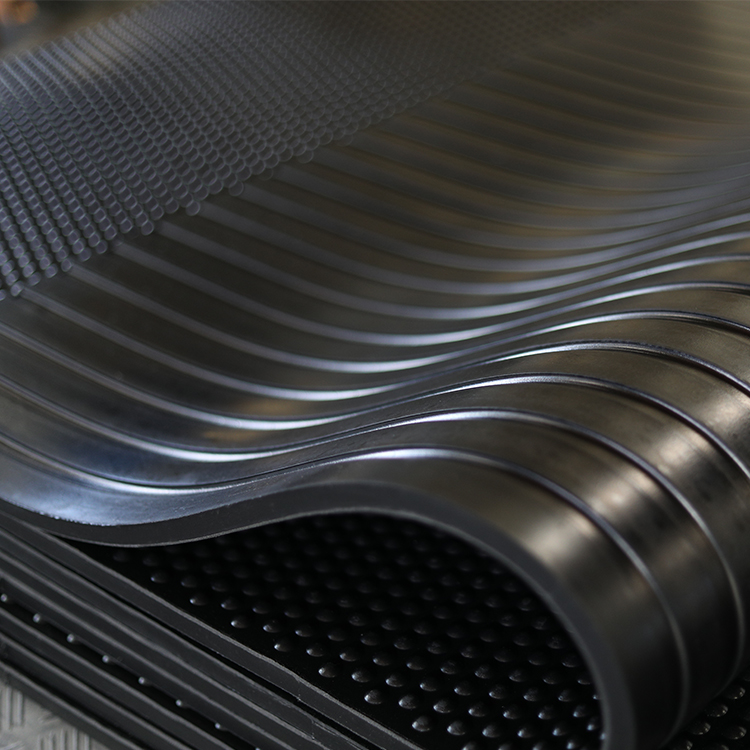

• Professional Horse Stalls & Barn Aisles: The signature 3/4-inch rubber horse stall mats eliminate the need for heavy straw layers, significantly lowering dust levels to protect sensitive equine respiratory systems.

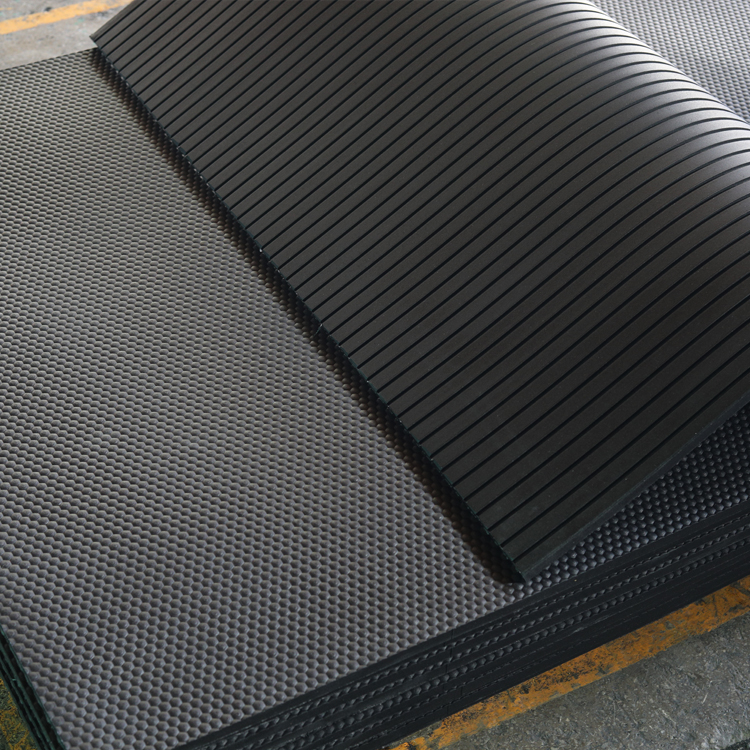

• Dairy Farm Free-Stall Comfort Beds: Highly resilient, interlocked cow bedding sheets placed in resting cubicles to prevent pressure sores and hock swelling.

• Equine Wash Bays & Grooming Areas: Open-drainage or highly textured bubble-top mats that allow continuous water flow while maintaining 100% slip-resistance for wet horses.

• Veterinary Clinics & Recovery Rooms: Soft, anti-fatigue, non-porous matting that can be chemically sanitized with aggressive disinfectants without degrading the polymer structure.

• Livestock Transport Trailers & Trucks: Tailored rubber ramp mats with heavy-duty horizontal ribs to prevent catastrophic slips when loading cattle and horses onto sloped ramps.

To guarantee zero-shifting and optimize the drainage efficiency of your interlocking horse stable mats, our engineering team recommends the following professional setup protocol:

1. Subfloor Preparation: The ideal subfloor is slightly sloped (1-2% grade) concrete or highly compacted crushed stone/gravel aggregate. Ensure the base is entirely cleared of sharp stones, manure residues, and deep depressions.

2. Acclimatization of Rubber Sheets: Lay the rubber rolls or mats flat in an open area for 24 hours prior to installation. This allows the vulcanized rubber matrix to normalize its internal stresses under local atmospheric temperatures.

3. Layout Strategy: Start placing the mats from the front entry of the horse stall, moving inward. For straight-edge mats, maintain a micro-gap of 2mm to allow for natural thermal expansion. For interlocking stable matting, tap the joints firmly together using a heavy-duty non-marking rubber mallet.

4. Bespoke Trimming: If trimming is required near barn pillars or wall edges, score the rubber surface along a straight steel ruler using a heavy-duty utility knife dipped in liquid soap or water. The lubricant drastically reduces friction, allowing for clean, automated-looking edges.

5. Sanitization Routine: Because Qihang mats are entirely non-porous, daily maintenance simply involves sweeping loose bedding or pressure washing with standard water hoses. Occasional deep cleaning with a 5% diluted chlorine solution will maintain a sterile, odor-free environment.

• Zero-Hazard & Low-Odor Formulation: Many cheap mats on the market use hazardous chemical softeners that emit strong PAH (Polycyclic Aromatic Hydrocarbons) vapors, causing respiratory stress in stalled animals. Qihang mats undergo secondary post-vulcanization outgassing processes, ensuring complete compliance with REACH Regulation (EC) No 1907/2006 and RoHS certification for safe indoor usage.

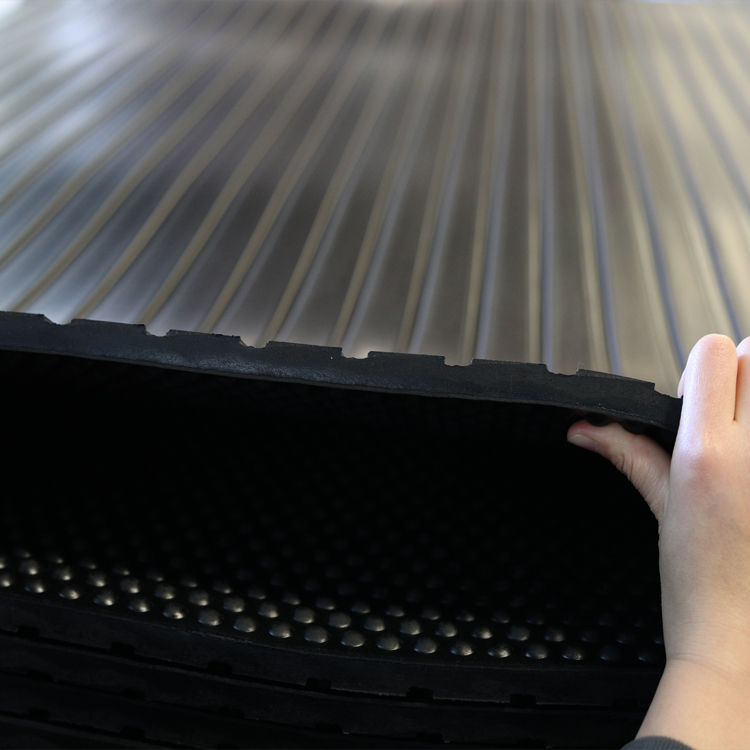

• Precision CNC Interlocking Tolerances: Our state-of-the-art CNC die-cutting systems guarantee that the male and female teeth of our interlocking panels engage with a friction-fit tolerance of ±0.1mm. This tight seam prevents liquid waste from slipping underneath the mats, preserving the integrity of the subfloor.

• Heavy Industrial Export Packaging: All mats are stacked perfectly flat on customized heavy-duty steel-strapped wooden pallets, enclosed in UV-stabilized stretch wrapping to completely prevent edge warping or moisture damage during cross-ocean freight transits.

Don't Let Hard Concrete Floors Compromise Your Livestock's Health & Your Farm's Margins! Qihang’s dedicated agricultural rubber specialists are ready to support your retail business or large-scale farming development. Contact us today to secure:

1. Complete B2B Wholesale Pricing Catalog (With tier-discounts for Full Container Loads - FCL).

2. Complimentary 150mm x 150mm Mini-Mat Textural Samples (Shipped globally via DHL/FedEx to test our density and traction).

3. Bespoke Layout Consultation based on your stable dimensions or trailer CAD drawings.

Simply submit the brief contact form below. Our global technical sales team will review your specifications and deliver a comprehensive commercial quotation and logistical proposal within 2 hours!
