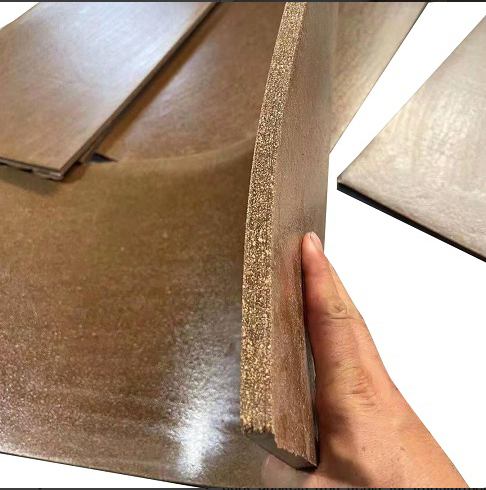

Nitrile Rubber Bonded Cork Gasket Sheet CR 106
CR106 nitrile rubber bonded cork sheet is really a high-performance rubber articles cork designed specifically for electronic equipment sealing. This kind of specialized rubberised cork gasket sheet is made of a specialized nitrile rubber put together with smaller cork granules.
Nitrile rubber bonded cork sheet is tremendously appropriate for most common transformer liquids and exhibits fantastic compressive energy, strength as well as flexibility. Additionally, it has good electronic insulation properties as well as is very tough. The thickness for the cork rubber sheet can be 1 mm to 20 mm thickness, width as customers' want.

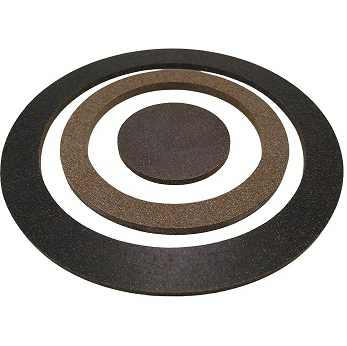

Nitrile rubber bonded cork sheet is used all around the world. By far, the most popular application for CR106 is producing cork gaskets and seals for transformers as well as electric equipment. Additionally, it is used for making electrical bushings and in several applications beyond the electrical industry which include tubing support liners and general-purpose cork gasket.
Physical Properties
| Properties | Test Method |
Results
|
|
Density
|
ASTMD795
|
1.3g/cm3
|
|
Tensile strength
|
ASTMF152
|
3.5mpa
|
|
Compressibillity
|
ASTMF36
|
30%
|
|
Elongation at break
|
ASTMF36
|
100%
|
|
MaxTem.
|
-
|
110℃
|
Sizes
| Thickness | 1-20mm |
| Width | 1.0-1.5meters |
| length | 1.0-4.2 meters |
