Coin Mat which has a Non-Skid surface one side and a fine cloth impression pattern on the other side. This flooring mat with a raised circular design on the surface is widely used in indoor application such as airport, hotels, shopping malls etc. Available in wide variety of colours and various compounds depending on their indented use. These mats are easily cleaned by reverse rolling or wiping.
Qihang Rubber Coin Mat (also known as studded rubber flooring, round button matting, or coin-top texture roll) represents the pinnacle of industrial-grade anti-slip surface technology. Engineered specifically to withstand intense mechanical stress and high-volume pedestrian foot traffic, our mats feature a precision-molded raised circular pattern that drastically enhances multi-directional traction while offering a sleek, contemporary aesthetic.

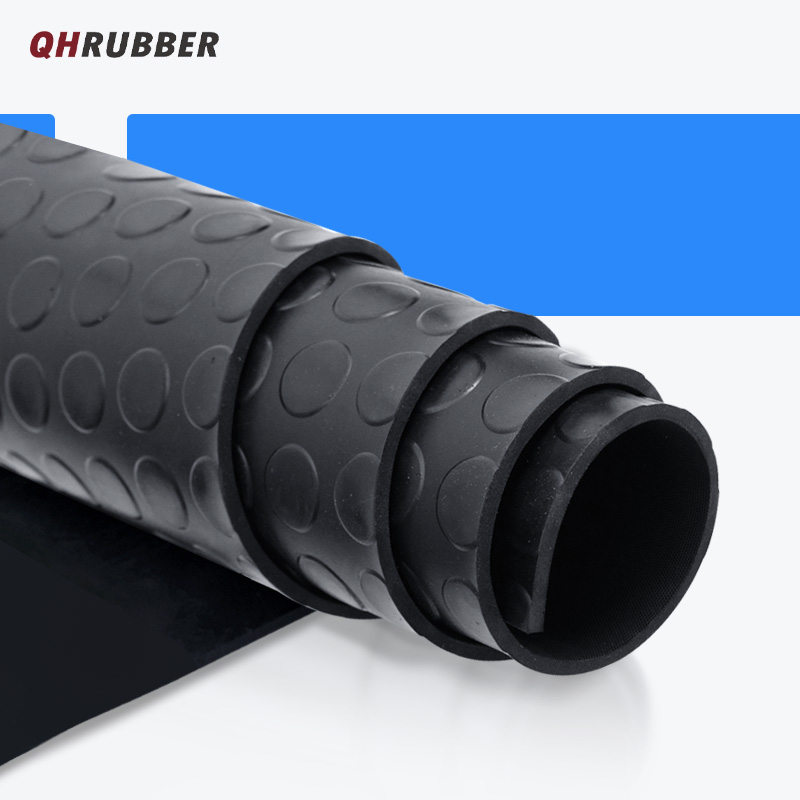

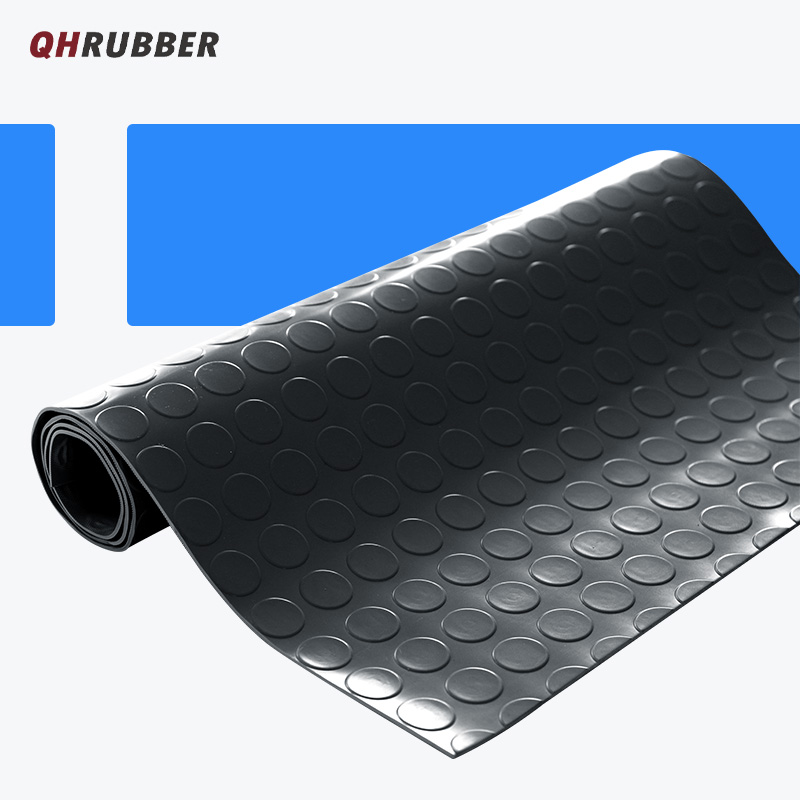

Figure 1: Qihang Premium Heavy-Duty Rubber Coin Mat with High-Traction Studded Design
Manufactured using state-of-the-art continuous vulcanization presses (Rotocure machines), each roll guarantees uniform thickness, flawless surface consistency, and a high-friction smooth or fine cloth impression on the reverse side to maximize subfloor adhesion. As a direct-factory global supplier, Tianjin Qihang custom-formulates these architectural-grade mats in four premium base polymers—NR/SBR, Nitrile (NBR), EPDM, and Neoprene (CR)—ensuring tailored performance across diverse commercial, industrial, residential, and hazardous military environments.
Unlike low-cost PVC or recycled plastic alternatives that crack under temperature fluctuations, Qihang’s vulcanized elastomer compound delivers unmatched structural integrity and long-term return on investment (ROI):
To assist procurement officers, structural architects, and global distributors in precise project matching, we provide an extensive array of standard configurations and custom compound engineering options:
| Code | Standard Colors | Thickness Range | Specific Gravity | Hardness (Shore A) | Tensile Strength | Elongation at Break | Base Polymer | Target Commercial / Industrial Application |
|---|---|---|---|---|---|---|---|---|
| QH-CM-01 | Black, Red, Green, Blue, Yellow, Grey | 3.0 mm - 6.0 mm | 1.50 g/cm³ | 80 +/- 5 or 65 +/- 5 | 3.5 MPa (35 Kg/cm²) | 250% | NR / SBR | General-purpose public flooring, walkways, aisle liners, and commercial ramps. |
| QH-CM-02 | Black, Dark Grey | 3.0 mm - 5.0 mm | 1.40 g/cm³ | 70 +/- 5 | 5.0 MPa (50 Kg/cm²) | 300% | Nitrile (NBR) | Oil-resistant machining workshops, automotive maintenance garages, and CNC areas. |
| QH-CM-03 | Black | 5.0 mm - 8.0 mm | 1.25 g/cm³ | 60 +/- 5 | 12.5 MPa (125 Kg/cm²) | 350% | NR / SBR Premium | Ultra-high traffic railway terminals, airport baggage claims, and heavy freight docks. |
| QH-CM-04 | Black, Custom Colors | 3.0 mm - 6.0 mm | 1.30 g/cm³ | 65 +/- 5 | 8.0 MPa (80 Kg/cm²) | 250% | EPDM | Outdoor open-air transit zones, marine vessel decks, and high-UV exposure areas. |
| QH-CM-05 | Black, Light Grey | 3.0 mm / 4.0 mm / 5.0 mm | 1.55 g/cm³ | 70 +/- 5 | 5.0 MPa (50 Kg/cm²) | 250% | NR / SBR Insulating | Dielectric protective flooring for low-voltage power distribution rooms. |
| QH-CM-06 | Light Grey | 3.5 mm - 5.0 mm | 1.50 g/cm³ | 75 +/- 5 | 6.0 MPa (60 Kg/cm²) | 250% | EPDM High-Volt | Advanced electrical safety switchgear mats with enhanced weather and ozone resistance. |
| QH-CM-07 | Black | 3.0 mm / 5.0 mm | 1.55 g/cm³ | 70 +/- 5 | 5.0 MPa (50 Kg/cm²) | 250% | Neoprene (CR) | Flame-retardant and fire-resistant marine, military, and subterranean infrastructure. |
*Architectural Engineering Notes: Custom widths up to 2,000 mm, tailored roll lengths (e.g., 10m, 15m, 20m), cloth insertion (1-ply or 2-ply polyester/nylon fabric for extreme tensile strength reinforcement), and precision PMS color matching are fully active for container-level B2B wholesale orders.
Selecting the optimized elastomer chemical base is paramount to ensuring product longevity and preventing premature floor degradation. Review our engineering matrix below:
NR/SBR (Natural Rubber / Styrene-Butadiene Rubber Blend): The global gold-standard for economy and general wear resistance. Offers phenomenal mechanical strength and elasticity. Perfect for commercial aisles, ramps, public transportation corridors, and packing areas.
NBR (Nitrile-Butadiene Rubber): Specially synthesized with a high Acrylonitrile content. Delivers superior resistance to swell and degradation when continuously exposed to hydraulic fluids, lubricants, diesel, animal fats, and industrial solvents.
EPDM (Ethylene Propylene Diene Monomer): Built with a fully saturated polymer backbone. Provides elite resistance against intensive outdoor UV radiation, atmospheric ozone, severe weathering, heat aging, and oxidization. The premier choice for outdoor architectural applications.
CR (Chloroprene / Neoprene): A multi-talented premium synthetic rubber. Inherently possesses flame-retardant properties (self-extinguishing), paired with moderate oil and environmental resistance. Crucial for marine vessels, petrochemical plants, and heavy defense infrastructure.
Qihang’s coin-top studded rubber rolls are universally implemented across multi-billion dollar sectors to protect substrates, enhance safety, and streamline aesthetic uniformity:

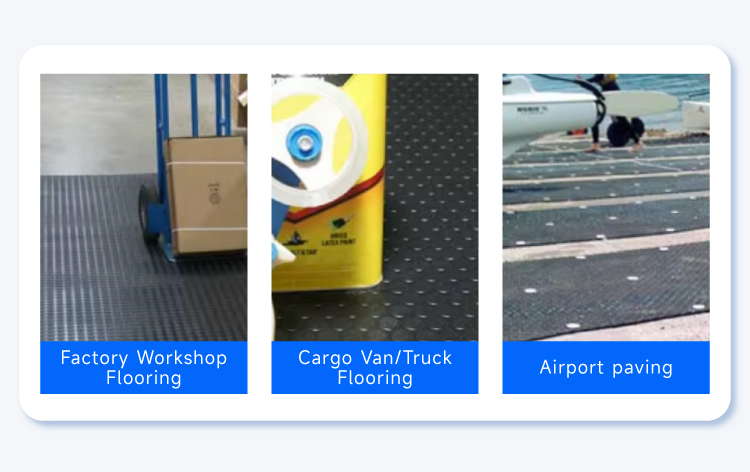

Figure 2: Real-world Application of Non-Slip Studded Flooring in High-Traffic Commercial Zones
Engineered to bear hundreds of thousands of daily commuters in airport check-in areas, international baggage claim lounges, subway platforms, train station waiting zones, and intercity bus terminal corridors.
Deployed as non-slip, oil-resistant flooring armor in premium residential garages, heavy commercial vehicle workshop service bays, transit van cargo liners, delivery truck beds, and public inner-city bus flooring sheets.
Protects expensive concrete subfloors from cracking under the weight of manual pallet jacks, tool carts, and light forklifts. Extensively utilized along sorting conveyor lines, automated packaging lines, and electronics assembly workstations.
Utilizing our specialized high-dielectric and flame-retardant formulations (Codes 5, 6, 7), these mats act as a vital safety barrier for operators working in high-voltage switchrooms, power generator plants, and industrial control rooms.
To ensure maximum life expectancy and optimal adhesion of your wholesale studded rubber flooring rolls, Qihang's technical engineering department recommends the following operational procedures:
The concrete or wood subfloor must be entirely structural, level, bone-dry, and completely free from loose dirt, plaster, residual bitumen, or curing compounds. Unroll all rubber coin mats in a clean environment at room temperature (above 15°C) for a minimum of 24 to 48 hours prior to trimming. This conditioning allows the rubber matrix to completely relieve any internal extrusion stresses and lay perfectly flat.
For light-duty applications or temporary protective layout, the mats can be dry-laid and joined at seams using heavy-duty double-sided industrial adhesive tapes. For permanent, ultra-high-traffic industrial placements, apply a premium, high-solid polyurethane or acrylic-based eco-adhesive across the subfloor using a notched trowel. Roll the rubber sheet systematically into position, and compress thoroughly with a 45kg heavy-duty floor roller from the center outward to displace all trapped air bubbles.
Maintaining the visual brilliance and performance of the coin top design is highly straightforward. Conduct daily sweeping or dry-vacuuming to eliminate abrasive sand and surface grit. For a deep periodic wash, clean with a standard damp mop or automated floor scrubber paired with a mild, pH-neutral detergent solution. Crucial Warning: Avoid all highly concentrated petroleum-based solvents, harsh aromatic thinners, or strong acidic solutions on NR/SBR mats, as they will cause permanent swelling and loss of tensile properties.
When sourcing from Qihang, you bypass middlemen and trade trading markups, forging a direct connection with an advanced manufacturing facility capable of handling massive commercial supply chains:
As an ISO-certified enterprise, we specialize in high-volume exporting of premium industrial rubber sheets and customizable anti-slip rubber mats to over 50 countries. Our production matrices include:
Q1: What is the Minimum Order Quantity (MOQ) for Qihang Rubber Coin Mats?
A: For our standard stocking profile in classic Black (3mm and 5mm thickness), the MOQ is highly flexible, starting as low as 10 to 20 rolls. For custom compound engineering, specialized polymer matrix blending (such as 100% Pure EPDM or NBR), or specific color requirements (e.g., Signal Yellow, Royal Blue), the standard MOQ typically requires 50 to 100 rolls per unique specification. Please reach out to our sales team to discuss trial order possibilities.
Q2: How do your rubber coin mats perform compared to cheap PVC coin flooring or other patterns?
A: True vulcanized rubber coin mats possess far superior elastomeric qualities compared to PVC. Rubber does not suffer from cold-brittleness or extreme summer thermal expansion, meaning it will never cup, warp, or crack. Compared to ribbed runner mats which are easier to sweep lengthwise, the coin pattern excels in providing multi-directional (360-degree) non-slip traction, making it safer for sudden turns and wheeled cart mobility.
Q3: Can your studded flooring rolls be ordered with internal fabric reinforcement?
A: Yes, absolutely. For intense mining, heavy rail, or industrial structural operations where extraordinary tensile strength and extreme dimensional stability are required, we can internally vulcanize 1-ply or 2-ply high-tenacity polyester, nylon, or cotton fabric meshes directly into the center of the rubber coin mat.
Q4: How does Tianjin Qihang verify compliance with European REACH and RoHS rules?
A: We implement meticulous screening on all incoming raw material elastomers, plasticizers, and process oils. Our compound formulations completely eliminate SVHCs (Substances of Very High Concern) and toxic heavy metals. We perform periodic test submittals to internationally respected third-party testing institutions (such as SGS or TÜV) to guarantee that our wholesale shipments safely comply with all updated European and North American environmental importation guidelines.
Q5: What is the typical lead time for a full 20ft container order of coin mats?
A: For a standard 20-foot Full Container Load (FCL) consisting of standard size and color allocations, our typical production turnaround is within 15 to 25 business days from receipt of the advance deposit. Custom formulations, specialized fabric insertions, or customized custom packaging requirements may adjust this timeframe by approximately 5 to 7 days. We maintain open communication throughout the entire manufacturing process with regular video and photographic status updates.
Are you an international distributor, local flooring wholesaler, or large engineering contractor looking for unmatched premium quality and stable direct-factory pricing? Qihang’s dedicated technical sales engineers are ready to deliver rapid structural quotes, custom compounding advice, and efficient logistics planning.
