Rubber flange gaskets are high-performance sealing components designed for flange connection systems, widely used in pipelines, valves, pumps, and industrial equipment. Their core function is to fill micro-gaps between flange surfaces, effectively preventing leaks of liquids, gases, or dust, and ensuring safe and stable operation under high-pressure, high-temperature, or corrosive conditions.
Qihang Rubber Flange Gasket (widely integrated into international pipeline tenders as custom rubber sealing washers, full-face pipe gaskets, or industrial flange seal rings) is a high-precision pressure containment component engineered for severe leak-free infrastructure fluid systems. Die-cut or molded to exact engineering tolerances, our gaskets deliver exceptional seal conformability, recovering dynamically under varying bolt load torques to intercept hazardous process media bypass.

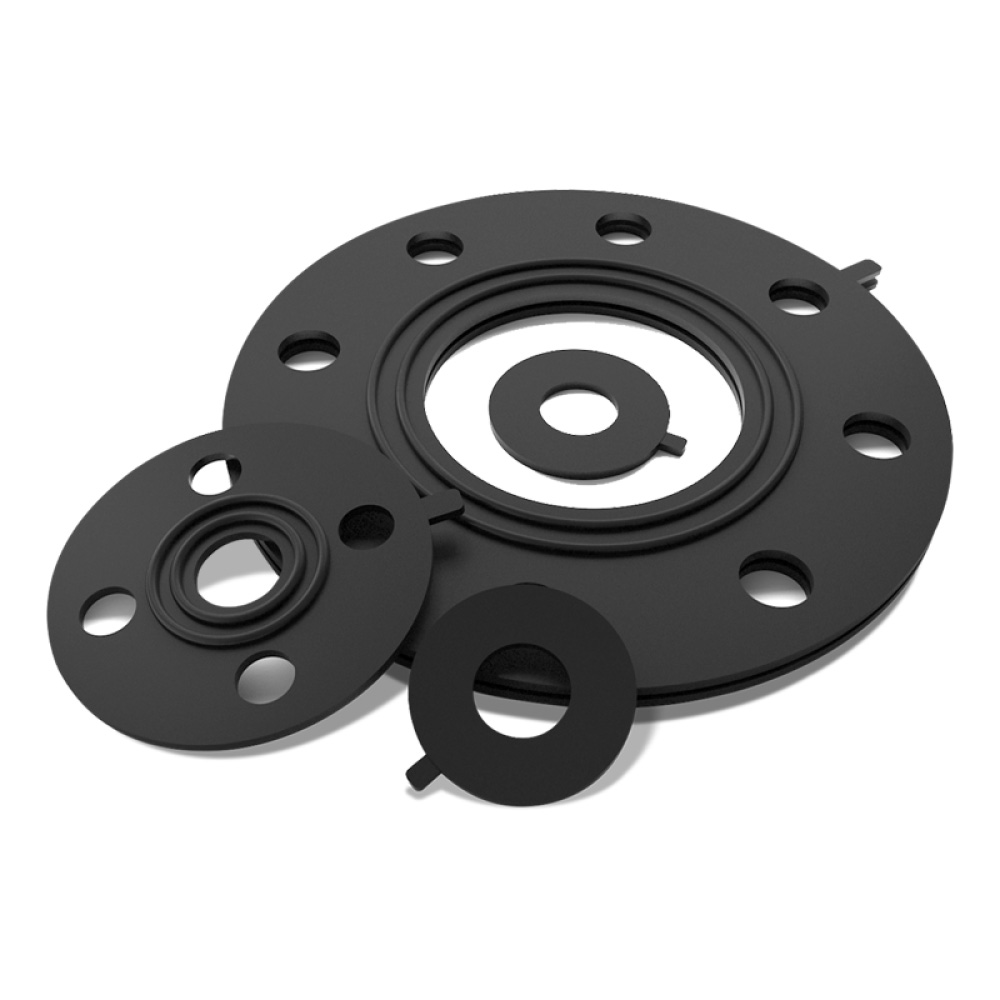

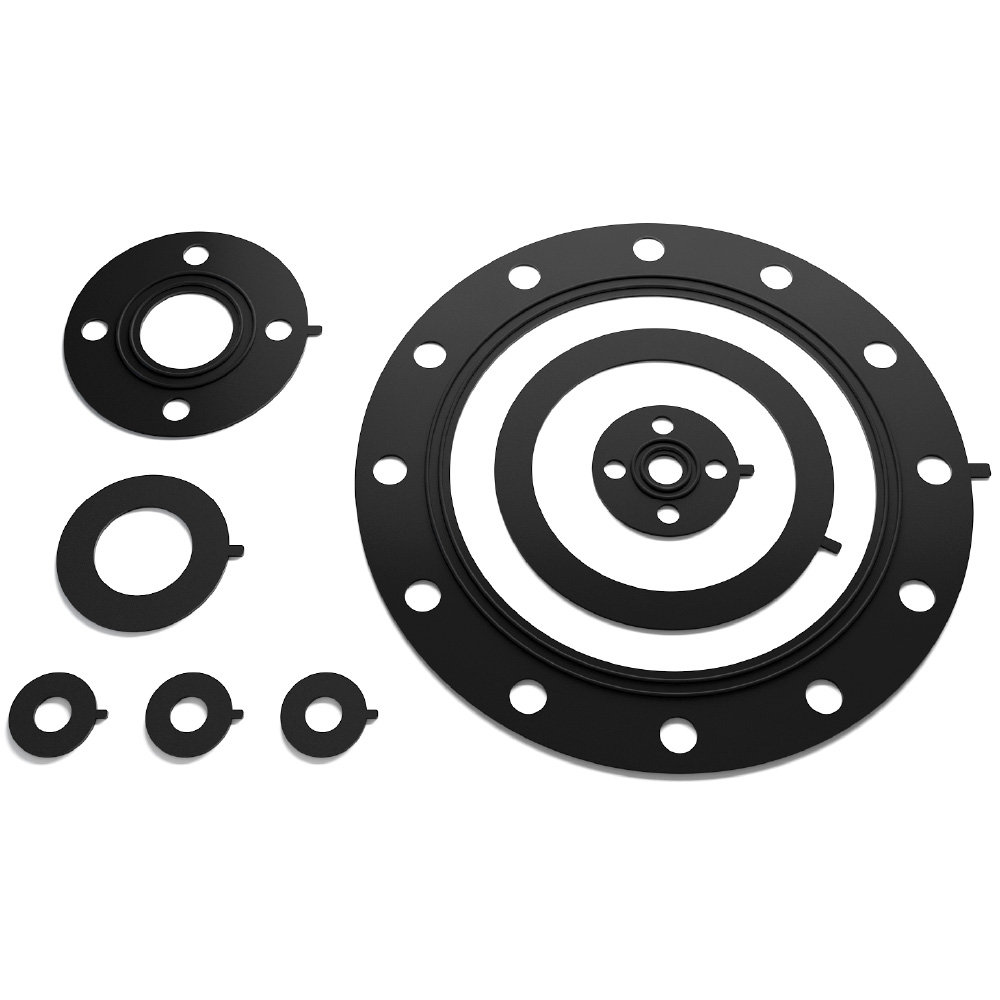

Figure 1: Qihang Full Face (FF) and Raised Face (RF) Precision Rubber Pipeline Flange Gaskets
Leveraging state-of-the-art automated CNC die-cutting systems and precision compression molding technologies, Tianjin Qihang guarantees immaculate edge finishes and flawless bolt hole alignment matching global pipage protocols. We formulate our commercial gaskets across an expansive selection of elite technical elastomer compounds—including SBR, oil-proof Nitrile (NBR), chemical-resistant EPDM, flame-retardant Neoprene (CR), and high-temp Viton (FKM)—supplying municipal water works, petrochemical plants, and maritime engineering projects worldwide.
To ensure immediate slip-in compatibility with international distribution stocks, Qihang manufactures rubber flange gaskets perfectly matching global pressure piping blueprints:
Selecting the correct core polymer is vital to prevent catastrophic seal relaxation. Review our factory-standard compound profiles below to align with your project fluid media:
| Material Elastomer | Hardness (Shore A) | Temperature Range | Primary Media Compatibility | Chemical Strength Advantages | Target Industrial Use Case |
|---|---|---|---|---|---|
| Commercial SBR | 65 +/- 5 | -20°C to +70°C | Low-pressure water, ambient air | High cost-efficiency, excellent physical impact cushions. | HVAC duct seals, municipal drainage, non-critical general utility joints. |
| Nitrile (NBR) | 70 +/- 5 | -25°C to +100°C | Petroleum oils, hydraulic fluids, diesel | Elite oil-swelling resistance, excellent compression set traits. | Oil refinery pipeline circuits, fuel transfer stations, transformer tank sealing. |
| EPDM Premium | 70 +/- 5 | -40°C to +130°C | Steam, dilute acids, alkalis, ozone | Supreme UV aging resistance, superior hot water endurance. | Municipal wastewater treatments, outdoor chemical distribution pipes, boiler linkages. |
| Neoprene (CR) | 65 +/- 5 | -30°C to +90°C | Seawater, refrigerants, mild chemicals | Inherent flame-retardancy, robust versatile environmental weathering. | Marine vessel cooling systems, coastal offshore structures, refrigeration lines. |
| Viton (FKM) | 75 +/- 5 | -20°C to +200°C | Aggressive solvents, fuels, high acids | Elite thermal resilience, resists breakdown from toxic chemical bases. | Aerospace fuel circuits, chemical processing plants, extreme-heat valve units. |
*Reinforcement Integration: To counter aggressive mechanical pipeline tension and prevent gasket extrusion under intense fluid pressures, Qihang supports custom fabric insertion (including high-tensile nylon cloth or polyester mesh reinforcement layering) embedded within any elastomer sheet thickness profile.
Engineered to form an absolute, air-tight block against industrial system pressures, our custom flange washers are relied upon heavily across modern supply markets:

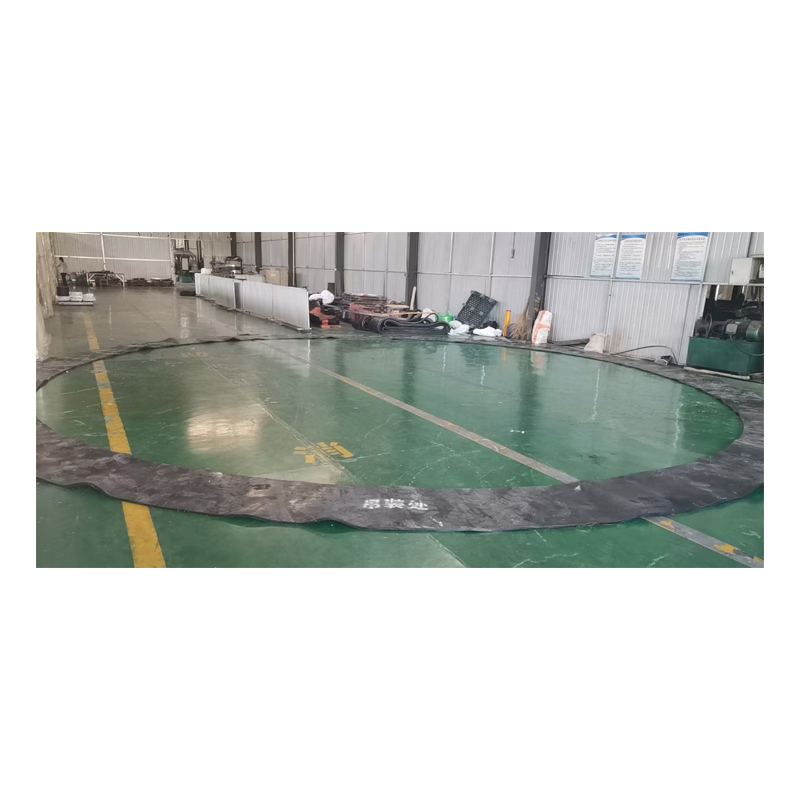

Figure 2: Real-world Installation of Qihang Full Face Pipe Gaskets in Water Treatment Infrastructure
Deployed extensively across potable water filtration lines, large sewage pump systems, and industrial water networks utilizing non-toxic, eco-safe EPDM configurations to maintain reliable joints.
Leveraging our high-density NBR (Nitrile) compounds, these washers secure pipe joints in oil storage terminals, petroleum transportation trucks, and chemical fuel dispensing setups against hydrocarbon vapor leaks.
Acts as durable saltwater barriers on cargo ship engine cooling manifolds, ballast tank distribution systems, and port facility fuel lines utilizing seawater-resistant Neoprene gaskets.
Formulated in ultra-stable Viton or specialized EPDM to seal valve flanges and reactive fluid pipelines in chemical processing labs, neutralizing acid spill risks.
To ensure a uniform, leak-free compression seal and protect elastomer flanges from crush over-tightening, follow our engineering guide:
Prior to slipping the fresh gasket between couplings, thoroughly clean both flange sealing faces using an industrial wire brush. Strip away all old stuck gasket residues, corrosion pits, scale, and greasy film. Check the flange alignment; mating flanges must sit perfectly parallel to prevent localized uneven bolt load concentrations that crack rubber seals.
Lubricate all bolt threads using a high-temperature industrial thread compound. Insert the rubber washer smoothly without folding. Always deploy a calibrated manual torque wrench. **Do not tighten bolts fully on the first pass.** Instead, torque all nuts in a progressive star/cross-pattern sequence (12 o'clock, then 6 o'clock, 3 o'clock, then 9 o'clock) across multiple incremental phases (30%, 60%, then 100% of final specified torque rating) to achieve perfect, balanced gasket seating.
Store bulk inventory rubber gaskets completely flat in their original moisture-tight factory packaging crates. Keep storage rooms cool (ideally under 25°C), dark, and completely clear of heavy electric motors or ozone generators to prevent atmospheric micro-cracking along edge radii.

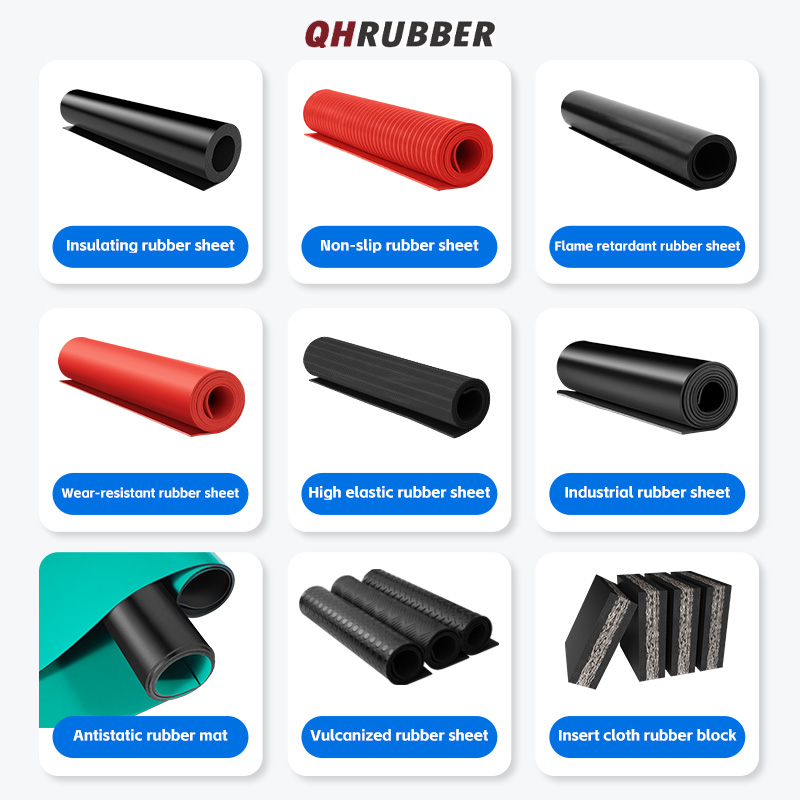

By procuring sealing wash components directly from Tianjin Qihang's advanced automated production yards, global municipal contractors and wholesale industrial supply networks eliminate trading house inflation. In addition to premium dimension flange gaskets, we manufacture massive volume outputs for high-grade industrial rubber sheets and architectural-grade anti-slip rubber mats engineered to satisfy international regulatory parameters:
Q1: What is the factory Minimum Order Quantity (MOQ) for custom rubber flange gaskets?
A: For standard pipeline dimensions matching ASME B16.21 or DIN standards in standard commercial EPDM or Nitrile compounds, our bulk factory MOQ begins efficiently at 100 to 500 pieces per size. For specialized non-standard dimensional shapes cut from custom engineering CAD blueprints or extreme-tier polymers (like pure Viton/FKM), our MOQ adapts to a flexible baseline dollar or roll equivalent depending on material layout optimization.
Q2: Does Qihang supply the basic material sheeting for local gasket die-cutters?
A: Yes, absolutely. Tianjin Qihang is a fully integrated manufacturer. While we operate premium CNC cutting lines to ship finished, ready-to-install flange washers, we are also a massive primary supplier of bulk rolls. Many international gasket distributors purchase our high-tensile cloth-inserted SBR, NBR, and EPDM rolls to run local die-cutting presses alongside our architectural anti-slip mats, such as our high-traction rubber coin mat series.
Q3: How do I know whether to choose Full Face (FF) or Raised Face (RF) rubber gaskets?
A: It relies strictly on your pipe flange hardware configuration. Full Face (FF) gaskets feature a solid diameter extending to the outer flange rim, including pre-cut bolt holes; these are mandatory for flat, brittle cast-iron or plastic/PVC pipeline flanges to prevent flange fracturing when bolts are torqued down. Raised Face (RF) ring gaskets are simpler, outer-diameter disks that sit entirely inside the inner ring of bolt studs; these are widely deployed for heavy-duty forged steel raised-face industrial pipe connections.
Q4: What third-party safety and toxicological compliance standards do your gaskets meet?
A: We implement comprehensive raw material tracking across all sealing components. Qihang gaskets are verified as completely compliant with European **REACH (SVHC screening)** and **RoHS** parameters through regular routing to accredited laboratory channels (like SGS). For critical drinking water networks, we configure dedicated food-grade non-toxic rubber compounds matching global standards.
Are you looking for an ISO-compliant, technologically advanced manufacturing partner to stabilize your global sealing distribution inventory or supply an international water pipeline project? Qihang's factory sealing technical team is online to deliver rapid sizing estimates, custom chemical compounding assistance, and international container logistics management.
Direct Enterprise Email: evan@qihangrubber.com
Or contact our sales office today to secure your free pre-production ANSI/DIN standard rubber gasket samples!
