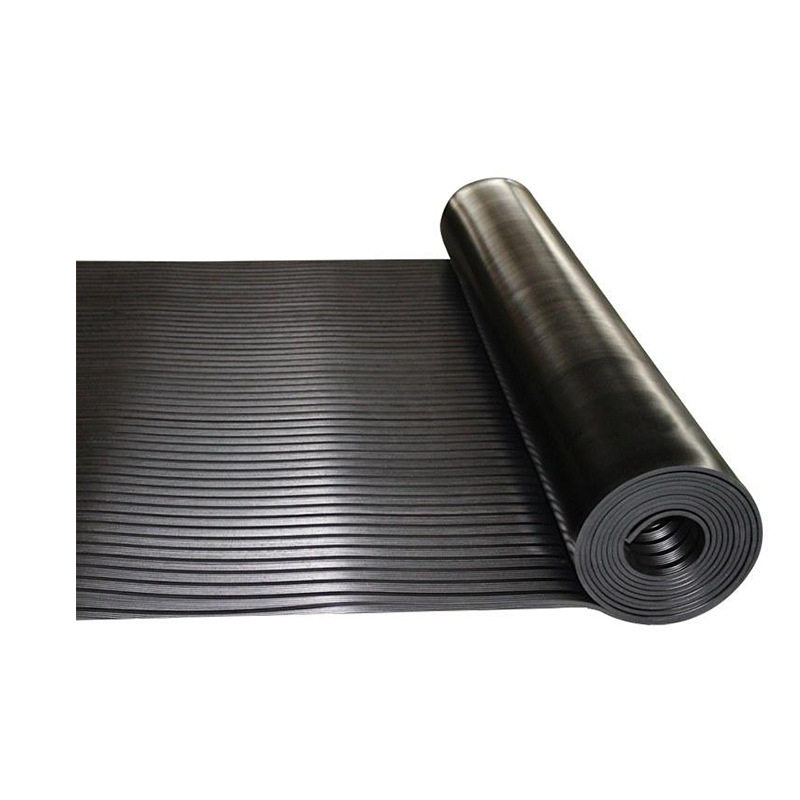

Flat Rib Mat which has an anti-slip ribbed surface one side and a fine cloth impression pattern on the other side. The multipurpose Flat Rib Mat is widely used in and around entranceways, lifts, stairs, escalator aprons, ramps and many more. The flat Rib mat castellated rubber matting flutes act as a scraper to trap dirt and debris. Anti-Skid Properties makes it ideal to use indoor as well as outdoor applications and creates a sustainable environment. These mats are easily cleaned by reverse rolling or wiping.

Material: High-Quality SBR or Heavy-Duty Synthetic Rubber Compounds.
Pattern: Wide Ribbed / Flat Ribbed / Broad Grooved.
Rib Width: Approximately 3mm - 5mm flat top ridges (Significantly wider and easier to sweep than fine rib mats).
Thickness: 3mm, 4mm, 5mm, 6mm available.
Standard Roll Size: Width 1.0m - 1.5m; Length 10m - 20m (Custom cut-to-length supported).
Color Selection: Black, Space Grey, Industrial Green, Red.

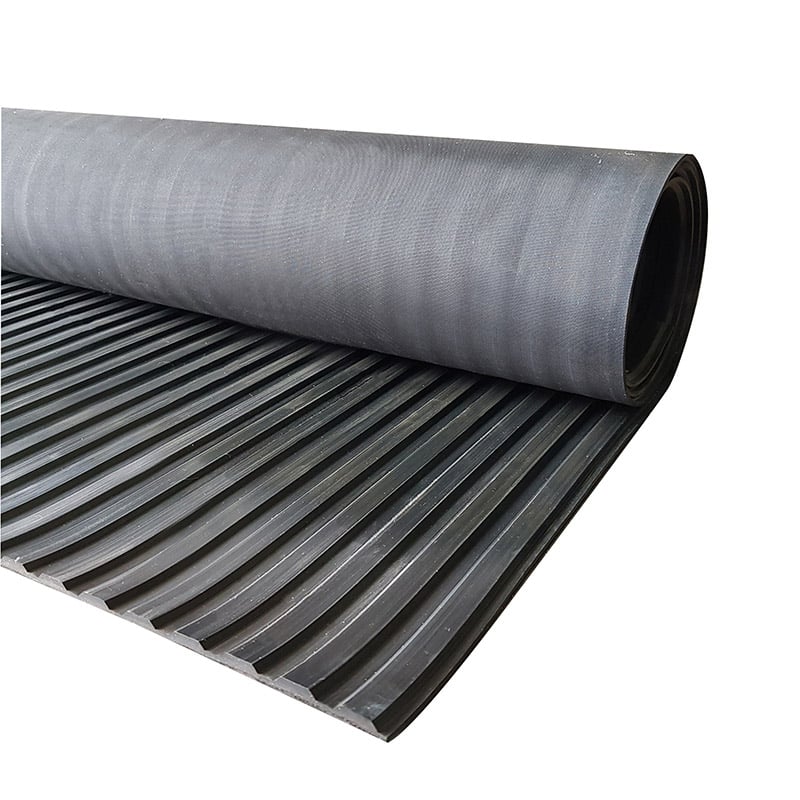

Qihang’s wide flat ribbed rubber matting roll represents the perfect balance between professional anti-slip safety and effortless maintenance. Unlike traditional deep-grooved mats that easily trap mud, stone dust, and liquids, our flat rib rubber mat features an advanced wider corrugated profile with a flat top. This unique engineering allows for rapid sweeping and mopping, making it the premier choice for facilities requiring strict hygiene and frequent cleaning.
This heavy-duty broad grooved rubber runner provides an exceptionally stable, low-vibration surface. It is intentionally designed to accommodate wheeled traffic, such as platform hand trucks, shopping carts, wheelchairs, and cleaning equipment, without creating the disruptive bumpy ride associated with finer ribbed mats.
Effortless Cleaning & Hygiene: The wide, shallow channels prevent dirt encapsulation. Facility janitors can easily clean the easy-clean flat ribbed rubber matting with a standard floor squeegee or industrial mop within seconds.
Smooth Wheeled Traffic Access: The broad flat-topped ridges minimize rolling resistance, ensuring effortless navigation for carts, luggage, and trolleys in heavy commercial hubs.
Excellent Impact & Noise Insulation: Thick vulcanized synthetic rubber dampens the clatter of footsteps and heavy cartwheels, creating a quieter workspace in long public corridors.
Flexible Installation Options: Can be loose-laid for seasonal weather protection or permanently glued down using polyurethane adhesives for high-traffic public infrastructure.
Our commercial-grade broad grooved rubber floor runner is highly versatile and optimized for:
Public Transportation Hubs: Pedestrian walkways, baggage claim areas, and ticket counters in airports, railway stations, and subway terminals.
Commercial Logistics: Supermarket stockrooms, commercial kitchens, hotel service corridors, and loading dock ramps.
Industrial Facilities: Laboratories, packaging departments, and electronics workshops where easy-to-clean floor protection is mandatory.
Seasonal Building Protection: Entrance vestibules during winter or rainy seasons to scrape heavy mud and snow from incoming footwear.
| Flat Rib Mat | ||||||||
| Code | Color | Thickness | Specific Gravity | Hardness (±5) | Tensile Strength | Elongation | Application | Polymer |
| MM | Gm/cm3 | SHORE A | Kg/cm2(min) | % | ||||
| 1 | Black, Green, red, yellow, blue | 3 | 1.5 | 65+/-5 | 35 | 250 | General Purpose | NR/SBR |
| 2 | Black | 3 | 1.4 | 70+/-5 | 50 | 300 | Oil Resistant | NITRILE |
| 3 | Black | 5 | 1.25 | 60+/-5 | 125 | 350 | High Traffic areas | NR/SBR |
| 4 | Black | 3 | 1.3 | 65+/-5 | 80 | 250 | Outdoor use | EPDM |
| 5 | Black, Grey | 3/4/5 | 1.55 | 70+/-5 | 50 | 250 | Electrical Insulation | NR/SBR |
| 6 | Black, Grey | 3.5 | 1.5 | 75 +/-5 | 60 | 250 | Electrical Insulation | EPDM |
| 7 | Black | 3/4/5 | 1.55 | 70+/-5 | 50 | 250 | Fire Resistant | Chloroprene |

Q1: What is the main operational difference between Flat Rib mats and Fine Rib mats?
A: The primary difference is cleanability and wheeled traffic. Fine rib mats provide slightly higher grip in extreme wet conditions but are harder to clean as dirt gets trapped in narrow slots. Flat rib mats (Wide rib) feature wider channels that can be swept or mopped clean instantly. Furthermore, flat rib mats offer a much smoother, low-vibration surface for hand carts and wheelchairs.
Q2: Do you support custom cut-to-length rolls for specific corridor dimensions?
A: Yes. While our standard roll length is 10 or 15 meters, we can provide precision custom lengths and widths to eliminate on-site material waste for your engineering projects. Please share your project floor plans with us, and we will calculate the most economical cutting scheme.
Q3: Are your wide ribbed rubber mats resistant to oils and common commercial cleaning chemicals?
"Get a Factory-Direct Quote for Flat Ribbed Rubber Mats — Tell Us Your Quantity & Size, and We'll Reply with Pricing within 2 Hours!"
