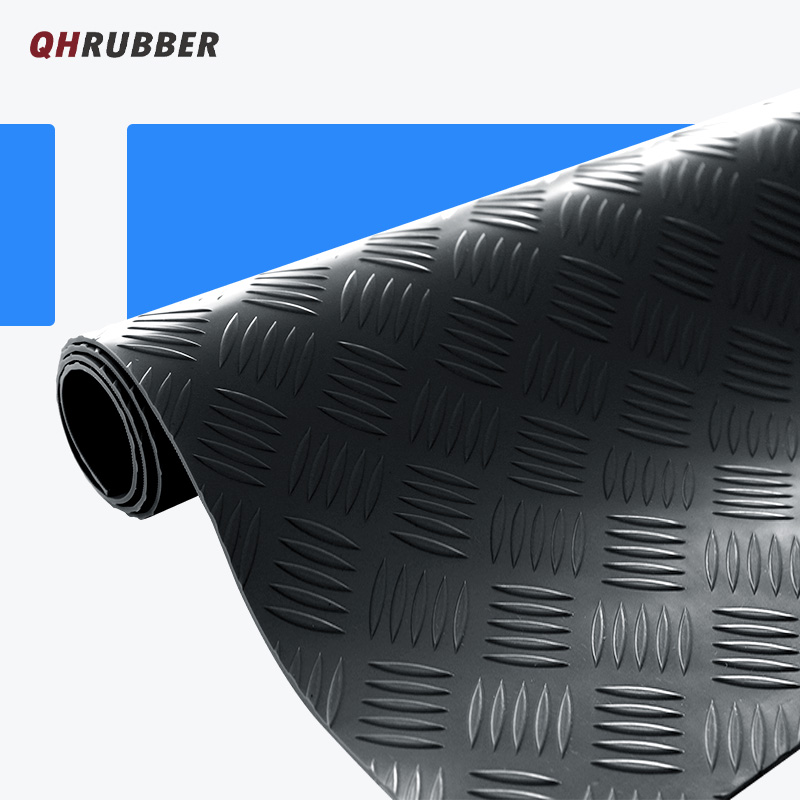

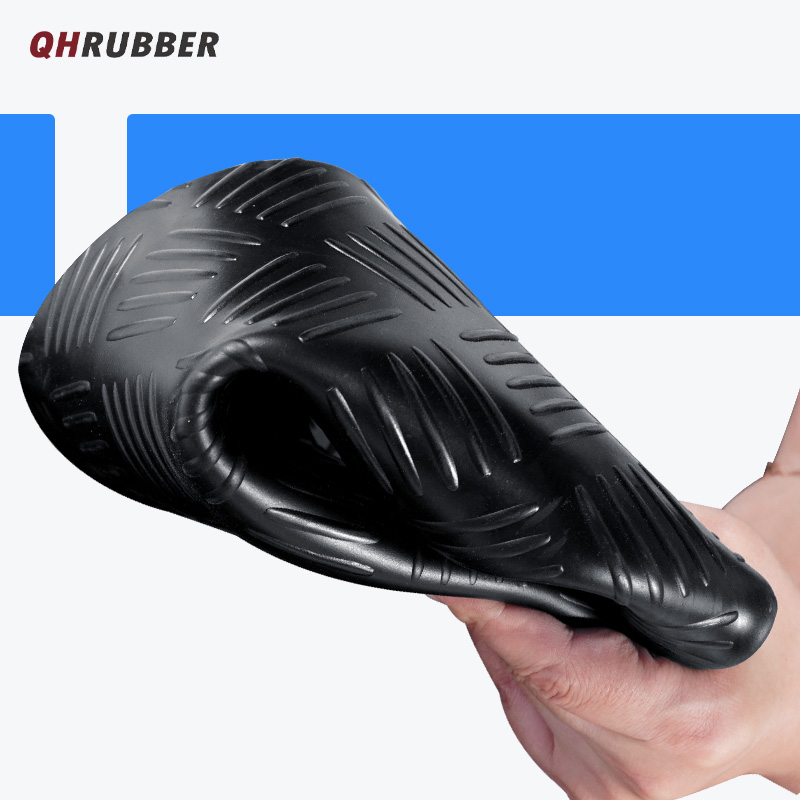

Checkered Design mat which has a Non-Skid surface one side and a fine cloth impression pattern on the other side. The flooring with continuous checkered field pattern is designed for excellent traction and easy cleaning. Non-staining, non-discoloring mat is used for both indoor and outdoor purpose. Checkered mat pattern is ideal for ramps, trailers, golf club bridge aprons, marine areas, building access points, wheeled vehicles, trolleys, etc. Being fully weather proof, it can be used either indoors or outdoors. Checkered pattern matting is manufactured from top quality rubber compounds which give high non-tear qualities, offering exceptional wear and grip characteristics. These mats are easily cleaned by reverse rolling or wiping.
Qihang Checkered Rubber Mat (widely referred to in international markets as 5-bar tread matting, checkered plate rubber roll, or willow leaf texture sheet) is a premium architectural-grade protection solution engineered for extreme anti-slip environments. Featuring a classic, deeply embossed five-bar checkered pattern, this heavy-duty mat delivers directional traction, excellent liquid drainage, and superior multi-surface grip under intensive pedestrian or vehicular traffic.

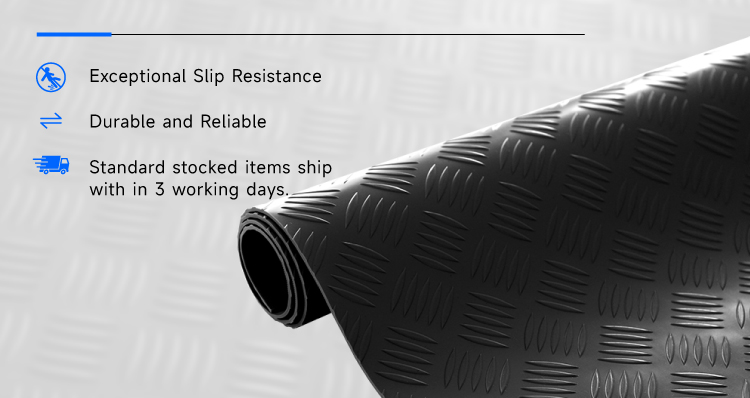

Figure 1: Qihang Premium Checkered Plate Rubber Matting with High-Traction 5-Bar Design
Utilizing high-end continuous vulcanization Rotocure systems, Tianjin Qihang ensures every roll possesses precise gage tolerances, exceptional tensile strength, and a textured cloth impression on the base to restrict sliding on subfloors. We formulate our enterprise-level checkered matting in a versatile range of elastomer matrices—including SBR/NR blends, oil-proof Nitrile (NBR), weatherproof EPDM, and flame-retardant Neoprene—to solve flooring safety challenges for industrial warehouses, transportation corridors, and marine docks globally.
Qihang's checkered plate rubber roll is specifically compounded to outperform cheap, brittle PVC alternatives, guaranteeing elite physical durability and consistent long-term performance:
We customize thickness, polymer orientation, and tensile properties to align perfectly with large-scale industrial tenders and distribution requirements:
| Item Code | Available Colors | Thickness Range | Specific Gravity | Hardness (Shore A) | Tensile Strength | Elongation at Break | Primary Base Polymer | Target Engineering Application |
|---|---|---|---|---|---|---|---|---|
| QH-CK-01 | Black, Red, Green, Blue, Grey | 3.0 mm - 6.0 mm | 1.50 g/cm³ | 65 +/- 5 or 80 +/- 5 | 3.5 MPa (35 Kg/cm²) | 250% | NR / SBR Blend | General public walkways, municipal building stairs, utility ramps, and animal trailers. |
| QH-CK-02 | Black | 3.0 mm - 5.0 mm | 1.40 g/cm³ | 70 +/- 5 | 5.0 MPa (50 Kg/cm²) | 300% | Nitrile (NBR) | Oil-prone automotive mechanic bays, engine maintenance rooms, and machine factories. |
| QH-CK-03 | Black | 4.0 mm - 8.0 mm | 1.30 g/cm³ | 65 +/- 5 | 8.0 MPa (80 Kg/cm²) | 300% | EPDM Premium | Heavy weathering outdoor railway steps, open-air shipping docks, and rooftop maintenance paths. |
| QH-CK-04 | Black, Dark Grey | 3.0 mm / 5.0 mm | 1.55 g/cm³ | 70 +/- 5 | 5.0 MPa (50 Kg/cm²) | 250% | Neoprene (CR) | Flame-retardant mass transit bus floors, marine ship pathways, and hazardous military platforms. |
*Custom Design Options: Qihang supports architectural custom widths (up to 2,000mm), specific roll packaging, integrated fabric reinforcement (nylon or polyester cloth-insertion for extreme tear resistance), and specialized dual-color co-extrusion formatting.
Due to its aggressive traction properties and industrial aesthetics, our 5-bar checkered plate rubber matting is trusted across multiple vertical markets:
Figure 2: Real-world Application of Checkered Plate Runner Mats in Heavy Transportation and Shipping Zones
Widely implemented as heavy-duty cargo liners for logistics delivery vans, commercial pickup truck beds, horse trailers, and public inner-city transit buses to protect metal subfloors from heavy shifting loads.
Provides dependable safety traction on manufacturing plant ramps, material handling inclines, outdoor emergency exits, and warehouse loading docks prone to oil mist or rainwater spray.
Utilizing our specialized weathering compounds, these mats serve as durable non-slip flooring for passenger vessel gangways, boat decks, dock walkways, and coastal packing warehouses.
Protects heavy-traffic plant aisles from intense abrasion caused by manual tool carts, heavy components, and constant foot traffic, while lowering ambient concrete structural noise.
To achieve ideal flat layout stability and long service lifespans for your bulk checkered rubber rolls, follow our standard factory instructions:
All vulcanized rubber rolls maintain minor internal packing stress from manufacturing extrusion. Unroll your checkered runner sheets completely flat in a room temperature environment above 15°C for 24 hours. This acclimatization allows the material to perfectly self-level, preventing edge-curling or seam-lifting post-bonding.
Ensure the base subfloor is structural, perfectly level, clean of oil residues, and completely dry. For mobile layouts or temporary vehicle installations, the mats can be safely taped at edges using high-strength double-sided industrial tapes. For high-traffic warehouse ramps or marine platforms, deploy a full coverage layer of structural polyurethane adhesive. Flatten using a 45kg heavy floor roller, rolling outwards from the center to express all trapped air.
Because the 5-bar channels allow debris to shift smoothly, routine cleaning simply requires a stiff broom or dry industrial vacuum. For muddy or heavily oiled surfaces, wash thoroughly using a damp mop, pressure washer, or automatic scrubber paired with a mild, pH-neutral commercial detergent. Technical Warning: Unless using our specialized NBR compound, protect SBR/NR sheets from continuous pooling of aromatic hydrocarbons, engine fuels, or strong acidic chemicals to avoid surface swelling.
By sourcing directly from Qihang Rubber, global engineering contractors and industrial wholesalers gain direct factory pricing, eliminating distributor trade markups. In addition to premium checkered runner matting, we operate multi-line automated production systems for comprehensive industrial rubber sheets and architectural anti-slip rubber mats tailored to global compliance guidelines:
Q1: What is the typical Minimum Order Quantity (MOQ) for Qihang Checkered Rubber Rolls?
A: For our standard commercial thickness profiles (3mm, 4.5mm, 5mm) in deep Black, the wholesale MOQ starts efficiently at 10 to 20 rolls. For custom Pantone co-extrusion coloring (such as industrial Yellow, Safety Red) or pure custom technical chemical polymer synthesis (such as 100% EPDM or NBR), the factory MOQ defaults to 50–100 rolls depending on specific width engineering.
Q2: What is the difference between a checkered mat and a coin pattern rubber mat?
A: Both profiles provide outstanding safety, but serve distinct structural goals. Our rubber coin mats offer excellent omnidirectional traction and are exceptionally easy to wash down, making them highly popular for airports, hotel walkways, and residential garage interiors. Conversely, the 5-bar checkered plate mat offers superior debris-scraping force and directional drainage channels, rendering it the premier choice for outdoor industrial inclines, muddy truck beds, and rain-swept maritime decks.
Q3: Do your checkered plate rubber mats include third-party environmental safety certificates?

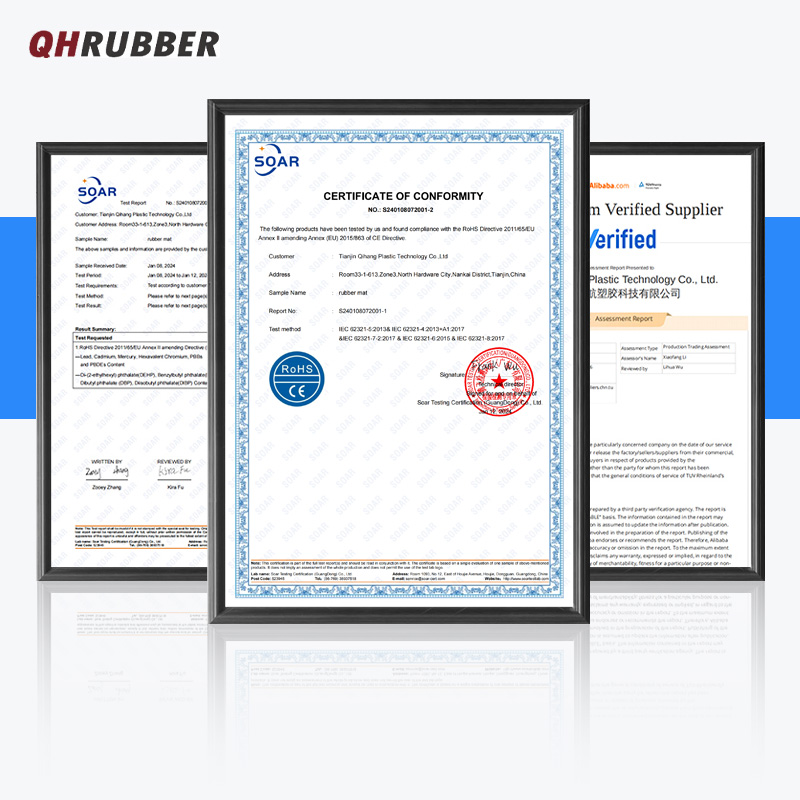

A: Yes, absolutely. We evaluate our raw materials thoroughly to maintain non-toxic, eco-safe industrial standards. Qihang periodically submits manufacturing material batches to globally authorized laboratory networks (such as SGS or TÜV) to verify full compliance with European **REACH (SVHC screening)** and **RoHS** import regulations, safeguarding indoor installation environments.
Q4: What is your standard delivery lead time for a 20ft container of 5-bar tread flooring?
A: For a standard 20-foot Full Container Load (FCL) containing standard stocking color distributions, our manufacturing window averages 15 to 25 calendar days post-deposit validation. Custom textile cloth-insert placements or customized branded private labeling add approximately 5 to 7 days to the production flow.
