Fine Rib Mat – Premium Anti-Slip Rubber Matting for Industrial & Commercial Safety
Elevate safety and efficiency with the Fine Rib Mat – a high-performance rubber mat engineered to tackle slippery surfaces, heavy loads, and harsh environments. Designed for demanding workplaces, its precision-engineered ribbed surface delivers unbeatable traction, durability, and versatility, making it the ultimate choice for factories, workshops, gyms, and beyond.
Base Elastomer Options: Standard Commercial SBR / Heavy-Duty NBR (Oil Resistant) / Premium EPDM (UV & Weatherproof) / Natural Rubber Blends.

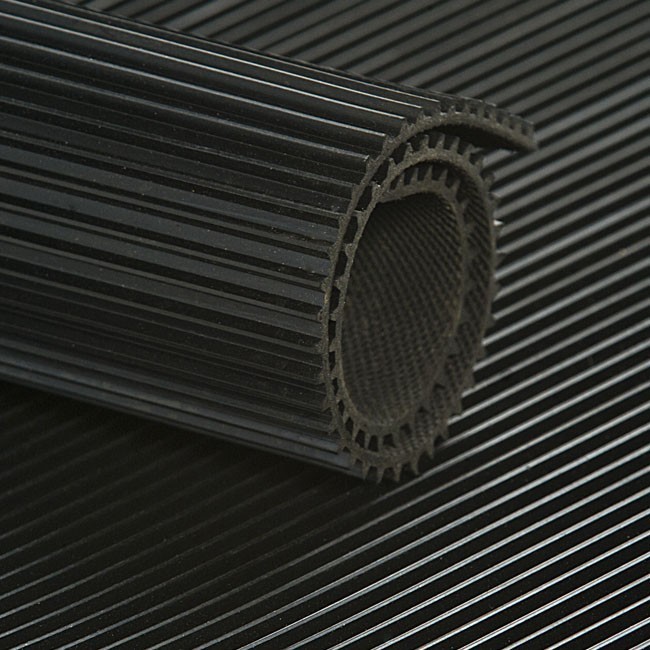

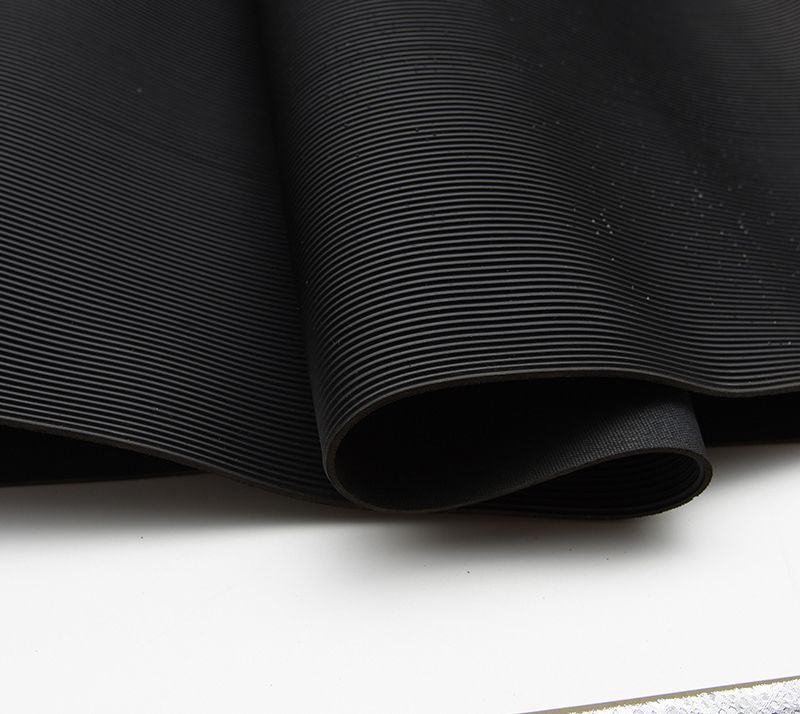

Surface Profile Design: Continuous V-Groove Parallel Fine Ribbed Pattern (Optimized for maximum fluid drainage and shoe-sole mechanical interlocking).
Standard Gauge (Thickness): 3mm, 4mm, 5mm, 6mm (Custom calipers up to 10mm engineered upon technical layout request).
Roll Width Spectrum: 1000mm, 1200mm, 1400mm, and 1500mm maximum seamless width.
Roll Length Uniformity: 10 meters, 15 meters, or 20 meters (Packaged tightly in heavy-duty moisture-proof PP woven bags).
Color Fastness Matrix: Jet Black, Slate Grey, Forest Green, Brick Red, or custom matching via RAL color codes.
Qihang’s industry-standard fine ribbed rubber matting roll represents a critical safety investment for modern manufacturing plants, processing facilities, and high-traffic commercial environments. Engineered via advanced rotational curing presses (ROTOCURE), this anti-slip fine rib rubber sheet eliminates the structural weak points often found in cheap, vertically-pressed alternative products. The parallel sharp-edged V-grooves are precision-molded to create a high-friction continuous topography, which dramatically reduces costly workplace slip-and-fall liabilities in both dry, dry-dusty, and moisture-prone operating zones.
Unlike generic flooring alternatives that degrade or become brittle when exposed to mechanical strain, our premium industrial anti-slip floor matting functions as an elastomeric shock absorber. It shields vulnerable subfloors—such as polished industrial concrete, epoxy coatings, or steel checker plates—from acute impact, dropped hand tools, and heavy wheeled traffic. Furthermore, the inherent dampening qualities of our premium compound provide noticeable anti-fatigue physical relief to assembly-line operators and maintenance crews standing for extended shifts, effectively improving long-term workplace productivity.
To ensure your facility receives the exact physical performance required by international building codes and industrial specifications, Qihang offers this premium runner matting in four distinct, non-recycled polymer matrixes:
SBR Compound (Styrene-Butadiene Rubber): Our most popular, highly economical solution for general-purpose environments. It delivers exemplary tear resistance and dry mechanical abrasion resistance, making it perfect for standard rubber runner mat for factory walkways.
NBR Formulation (Nitrile-Butadiene Rubber): Specially synthesized for automotive garages, CNC machining cells, and petrochemical installations. This oil-resistant variant resists swelling, softening, and degradation when continuously exposed to lubricating oils, hydraulic fluids, diesel fuel, and cutting coolants.
EPDM Matrix (Ethylene Propylene Diene Monomer): Tailored specifically for outdoor architectural infrastructure, marine decks, and non-climate-controlled loading docks. It boasts elite resistance to ozone cracking, intense UV radiation, oxidation, and extreme temperature fluctuations from -40℃-+100℃.
NR/SBR Hybrid (Natural Rubber Blend): Engineered for applications requiring maximum physical resilience, rapid elastic recovery, and superior structural elasticity under repetitive high-load conditions.
The technical adaptability of our heavy-duty workshop floor protection mat makes it an indispensable asset across a diverse cross-section of heavy industry, transport logistics, and commercial real estate infrastructure:
Industrial Plants & Assembly Lines: Excellent for primary escape routes, packing stations, high-voltage electrical switchboard perimeters (when ordered as an insulating grade), and multi-level catwalk walkways.
Automotive & Fleet Transportation: Applied extensively as anti-slip protective lining rolls inside light commercial van interiors, transit buses, heavy-duty truck beds, utility trailers, and emergency response vehicle storage compartments.
Commercial & Public Spaces: Ideal for heavy foot-traffic pedestrian corridors, airport baggage claim areas, railway station ramps, ski resorts, and building vestibules during severe winter or rainy seasons.
Aviation & Marine Settings: Utilized on aircraft maintenance step-mats, ground support equipment decks, tool-cart tops, and vessel walkways to secure grip during rough sea state vibrations.
| Fine Rib Mat | ||||||||
| Code | Color | Thickness | Specific Gravity | Hardness (±5) | Tensile Strength | Elongation | Application | Polymer |
| MM | Gm/cm3 | SHORE A | Kg/cm2(min) | % | ||||
| 1 | Black, Green, red, yellow, blue | 3 | 1.5 | 65+/-5 | 35 | 250 | General Purpose | NR/SBR |
| 2 | Black | 3 | 1.4 | 70+/-5 | 50 | 300 | Oil Resistant | Nitrile |
| 3 | Black | 5 | 1.25 | 60+/-5 | 125 | 350 | High Traffic area | NR/SBR |
| 4 | Black | 3 | 1.3 | 65+/-5 | 80 | 250 | Outdoor use | EPDM |
| 5 | Black, Grey | 3/4/5 | 1.55 | 70+/-5 | 50 | 250 | Electrical Insulation | NR/SBR |
| 6 | Black, Grey | 1.5 | 1.5 | 75 +/-5 | 60 | 250 | Electrical Insulation | EPDM |
| 7 | Black | 3/4/5 | 1.55 | 70+/-5 | 50 | 250 | Fire Resistant | Chloroprene |
Color:
To achieve a permanent, wrinkle-free, and maximum-durability installation in high-traffic zones, Qihang recommends the following industrial installation procedure:
Subfloor Preparation: Ensure the concrete or metal subfloor is completely dry, structural sound, and free of dirt, loose paint, chemical oils, or curing compounds.
Acclimatization: Unroll the fine ribbed rubber matting roll at the installation site for at least 24 hours prior to adhesive application. This neutralizes the inherent manufacturing roll tension and allows the elastomer to normalize to the room's ambient temperature and humidity.
Adhesive Selection: For areas subjected to heavy wheeled forklift traffic, apply a premium heavy-duty dual-component polyurethane industrial adhesive. For light pedestrian areas, a high-tack pressure-sensitive acrylic adhesive or strong double-sided industrial floor tape is fully sufficient.

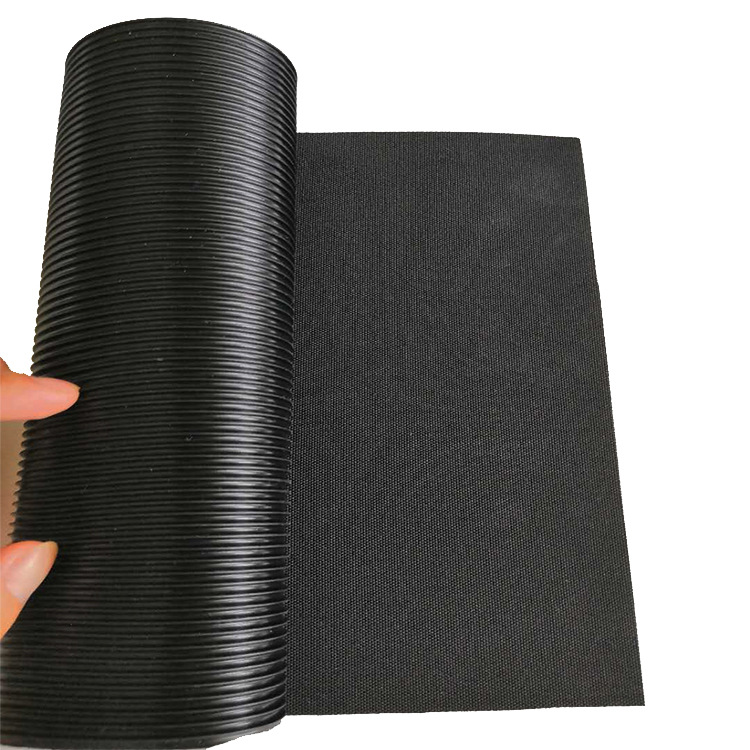

Boding Enhancement: When purchasing, specify Qihang’s Texture Fabric Impression Bottom Finish. The microscopic cross-hatch texture on the bottom face increases total surface bonding surface area, accelerating adhesive anchorage and preventing lateral mat shifting under shear load.
Q1: What specific raw materials do you use to ensure your fine rib rubber matting complies with strict European environmental regulations?
A: At Qihang, we prioritize workplace health and eco-compliance. Unlike low-cost manufacturers who blend hazardous, unrefined recycled scrap tire powders containing high concentrations of volatile organic compounds (VOCs) and Polycyclic Aromatic Hydrocarbons (PAHs), Qihang utilizes 100% refined virgin base polymer compounds. Our fine rib matting rolls are rigorously tested and fully certified to pass REACH (EC 1907/2006) and RoHS (2011/65/EU) international safety compliance parameters, ensuring zero pungent or toxic off-gassing when installed in enclosed commercial corridors or vehicle interiors.
Q2: Can Qihang manufacture custom continuous roll lengths to prevent seam-lines in long industrial corridors?
A: Absolutely. Standard production lengths are 10 meters and 15 meters to ensure manageable roll weight during manual shipping and handling. However, because we utilize continuous ROTOCURE machinery, we can easily customize roll lengths up to 30 or 50 continuous linear meters per roll depending on the thickness caliper selected. Minimizing joints and seams along your rubber runner mat for factory walkways drastically lowers dirt accumulation points and prevents accidental tripping hazards caused by seam curling.
Q3: We operate a worldwide procurement agency. Can you provide custom branding or private-label packaging for our wholesale shipments?
A: Yes. We maintain an agile OEM partnership program for global distribution companies and industrial supply brands. We can customize the product packaging with branded protective clear film wraps, apply custom color-coded tracking labels, print your specific product barcodes, and pack the rolls on ISPM-15 certified heat-treated wooden export pallets. We also offer custom color formulation blending matching your corporate identification or specific RAL requirements for minimum container load volume contracts.
Tianjin Qihang Plastic Technology Co., Ltd
12+ Years Expertise in Industrial Rubber Sheet Manufacturing • Global Export Leader • REACH/RoHS Certified
