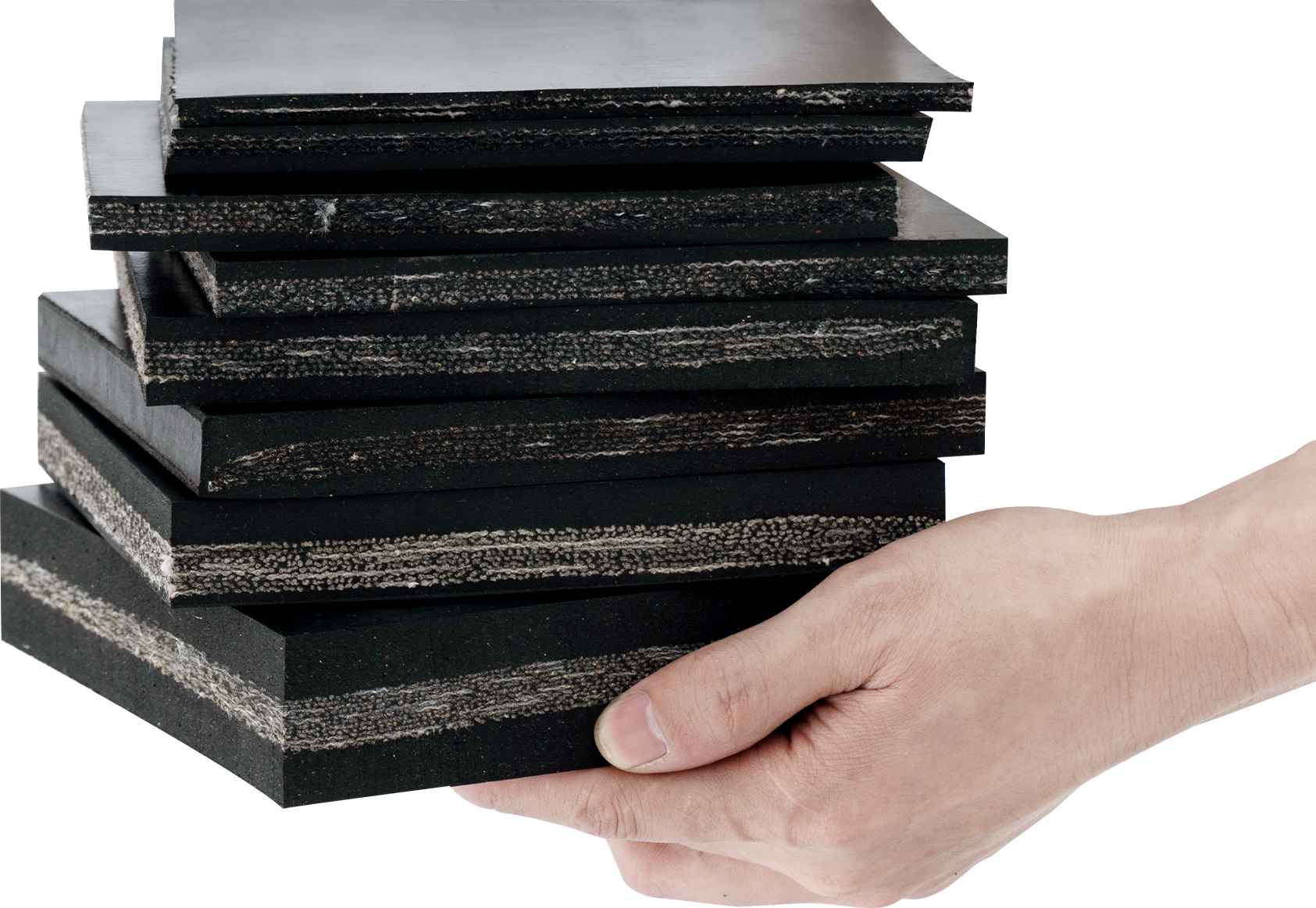

Insertion Rubber Sheet is a reinforced rubber material designed with one or more layers of fabric embedded inside the rubber. This structure significantly improves the tensile strength, tear resistance, and durability of the rubber sheet, making it suitable for demanding industrial environments.
Our insertion rubber sheets are manufactured using high-quality rubber compounds such as SBR, NBR, EPDM, and Neoprene, combined with durable cotton fabric reinforcement layers. The result is a strong, flexible, and long-lasting industrial rubber material that performs well in heavy-duty applications.

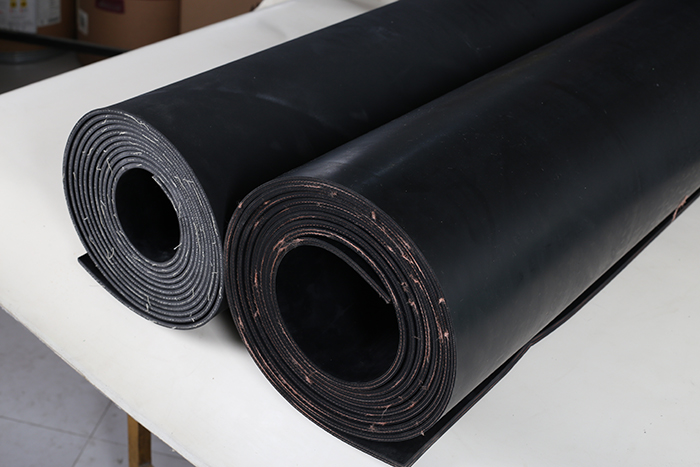

Our Fabric Reinforced Rubber Sheet is available in a variety of sizes and reinforcement configurations to meet different customer requirements.
The standard width ranges from 0.5 m to 3 m, with the most commonly produced thicknesses of 5 mm and 8 mm. Custom dimensions can also be manufactured according to specific project needs.
For reinforcement construction, the sheet can be produced with:
The reinforcement fabric can be selected based on customer requirements, including:

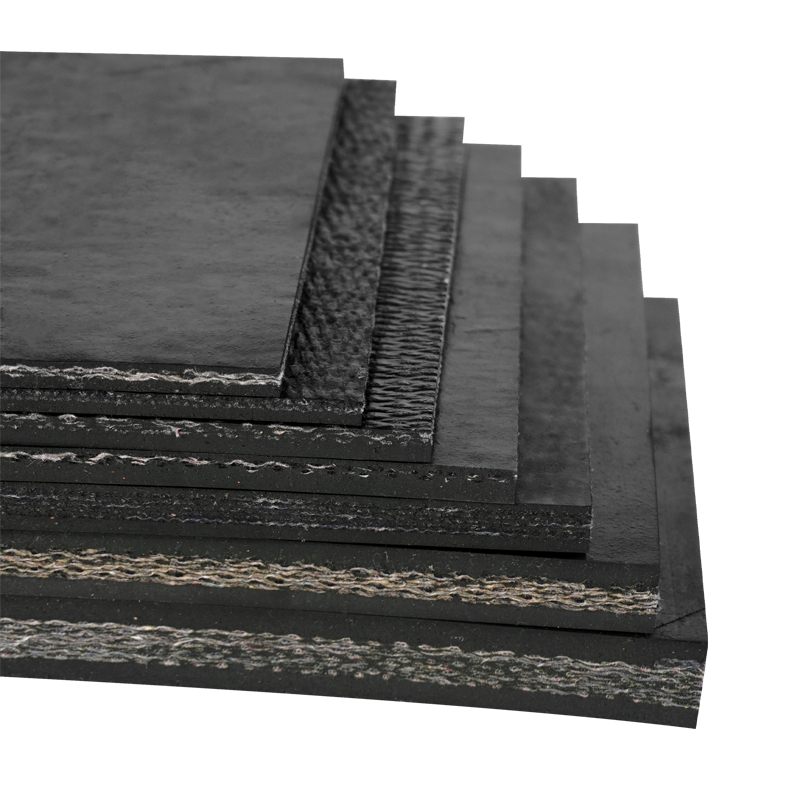

To achieve different structural requirements, the rubber sheet can be manufactured with one layer, two layers, or multiple layers of fabric reinforcement embedded within the rubber compound.
Both the reinforcement material and the number of fabric layers can be customized to suit specific application requirements.
Contact us to get a free samples

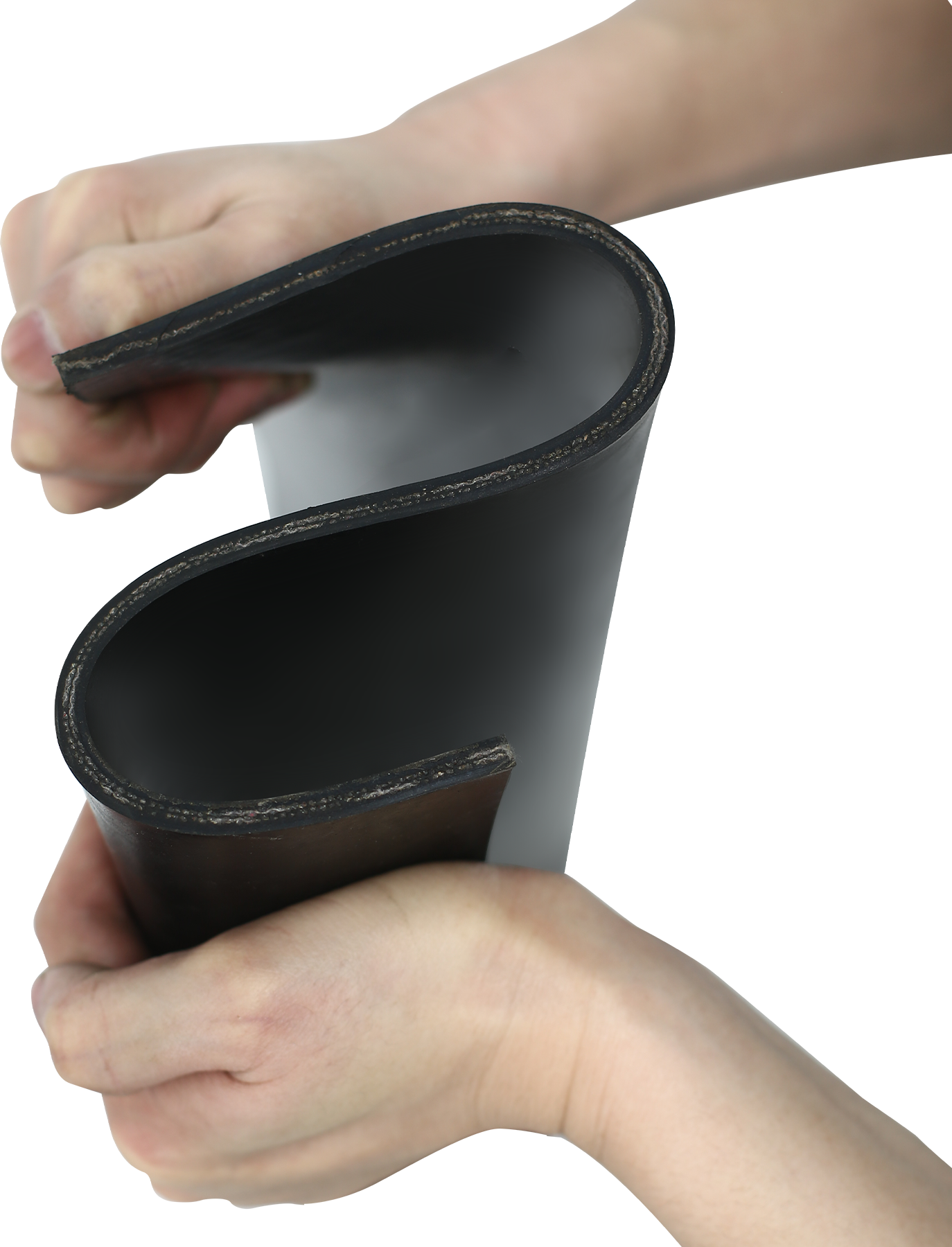

The fabric reinforcement helps maintain the shape and dimensions of the rubber sheet during use, effectively reducing shrinkage, elongation, and deformation. Manufactured from high-quality rubber compounds, the sheet offers excellent wear resistance and can effectively withstand surface damage caused by continuous use.
To verify its durability, we conducted an impact test on the fabric reinforced rubber sheet. The sheet was placed on top of a brick and repeatedly struck with a heavy hammer. As a result, the brick underneath cracked, while the surface of the rubber sheet remained intact without visible damage. This test demonstrates the excellent wear resistance, tensile strength, and deformation resistance of the fabric reinforced rubber sheet.
Advanced manufacturing processes ensure a strong bond between the rubber layers and the reinforcing fabric, providing stable performance and long-term reliability throughout its service life.

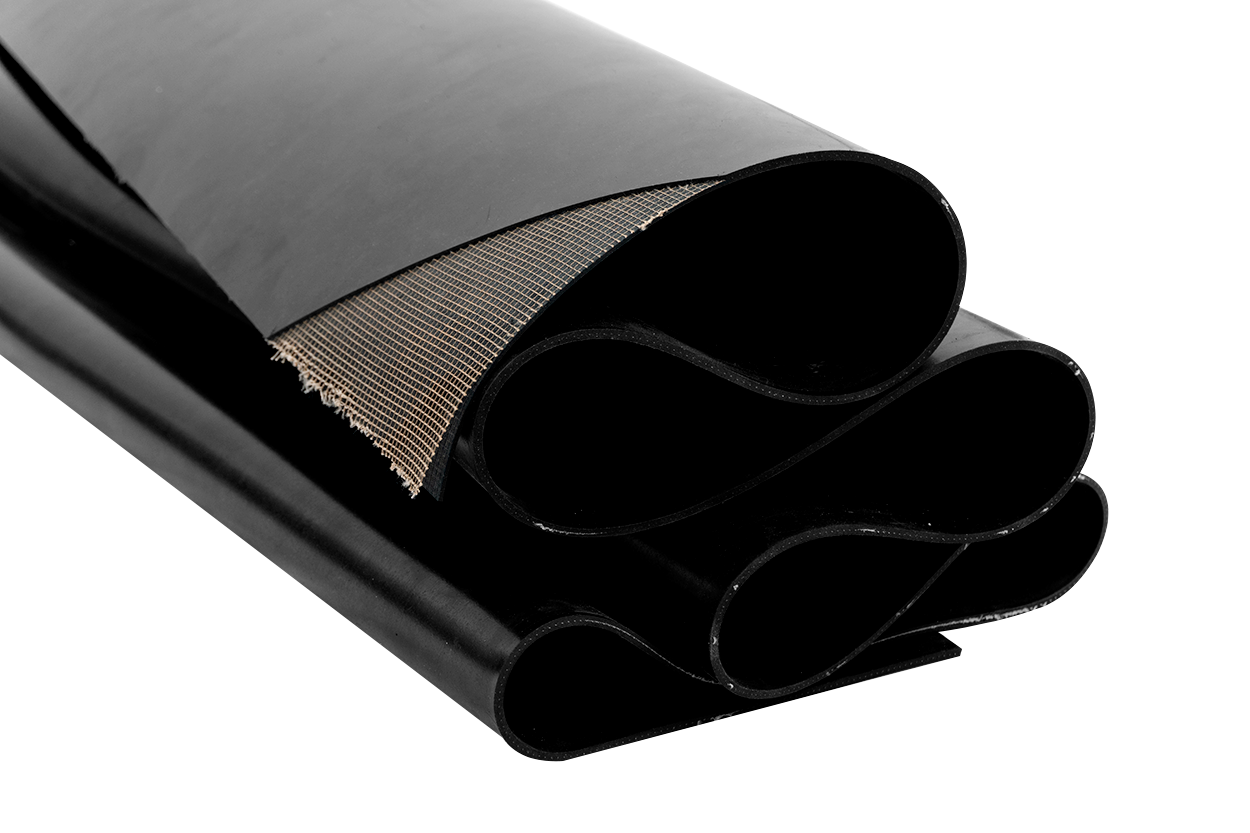

Compared with ordinary rubber sheets, the insertion of reinforcement fabrics significantly improves the overall stability of the sheet. Cotton gauze fabric or nylon fabric can be embedded into the rubber sheet structure, greatly enhancing its resistance to deformation and increasing its tensile strength under demanding working conditions.
The rubber compound can be customized according to customer requirements, including Natural Rubber (NR), SBR, NBR, EPDM, and other formulations to suit specific operating environments and performance requirements.

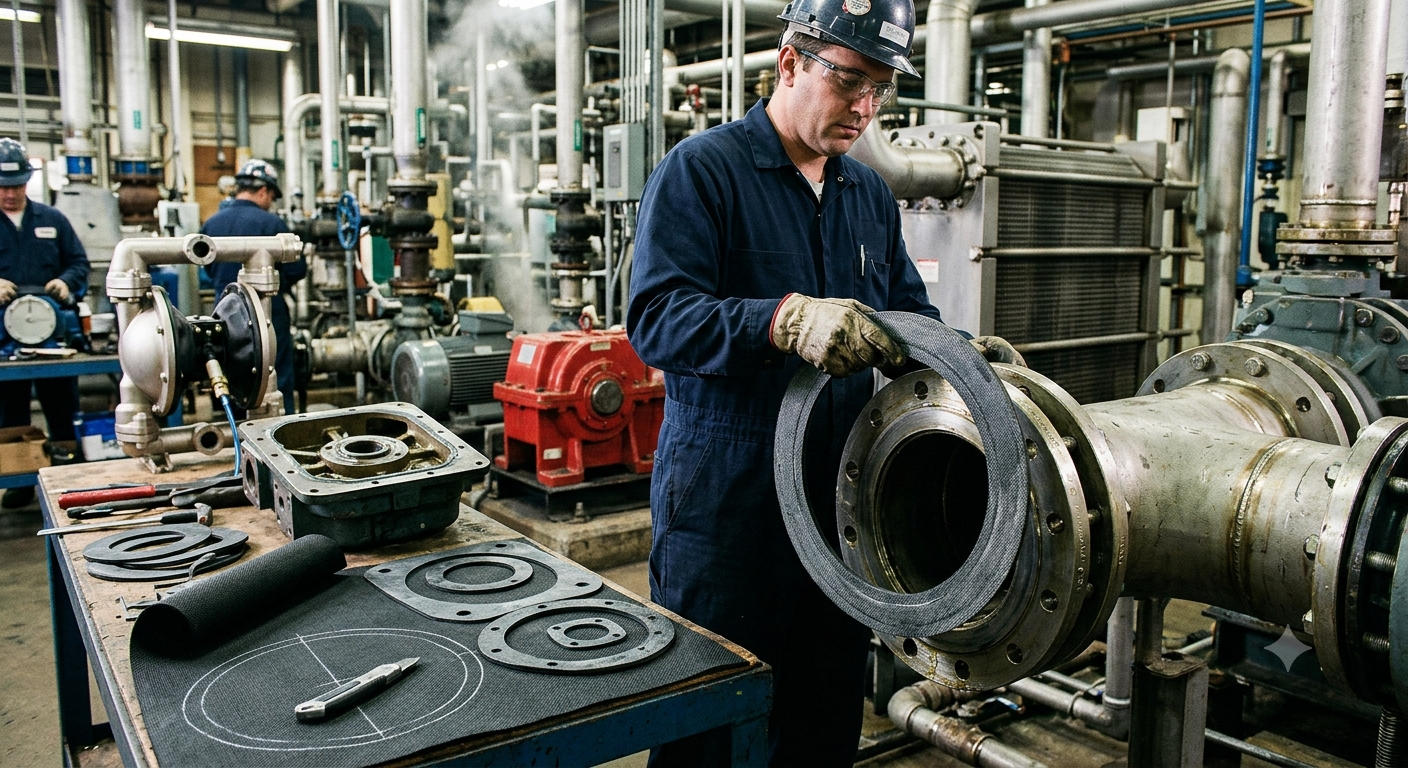

Fabric Reinforced Rubber Sheet is widely used for manufacturing industrial gaskets and sealing components. Compared with ordinary rubber sheets, reinforced rubber sheets are less likely to deform under high-pressure conditions, providing more reliable sealing performance and a longer service life.
The embedded fabric reinforcement enables the material to withstand repeated compression and stretching while maintaining its dimensional stability. This makes it an ideal choice for applications in pumps, valves, heat exchangers, air compressors, hydraulic systems, and other industrial equipment.
We can also manufacture custom-cut gaskets and sealing parts according to customer drawings and specifications.

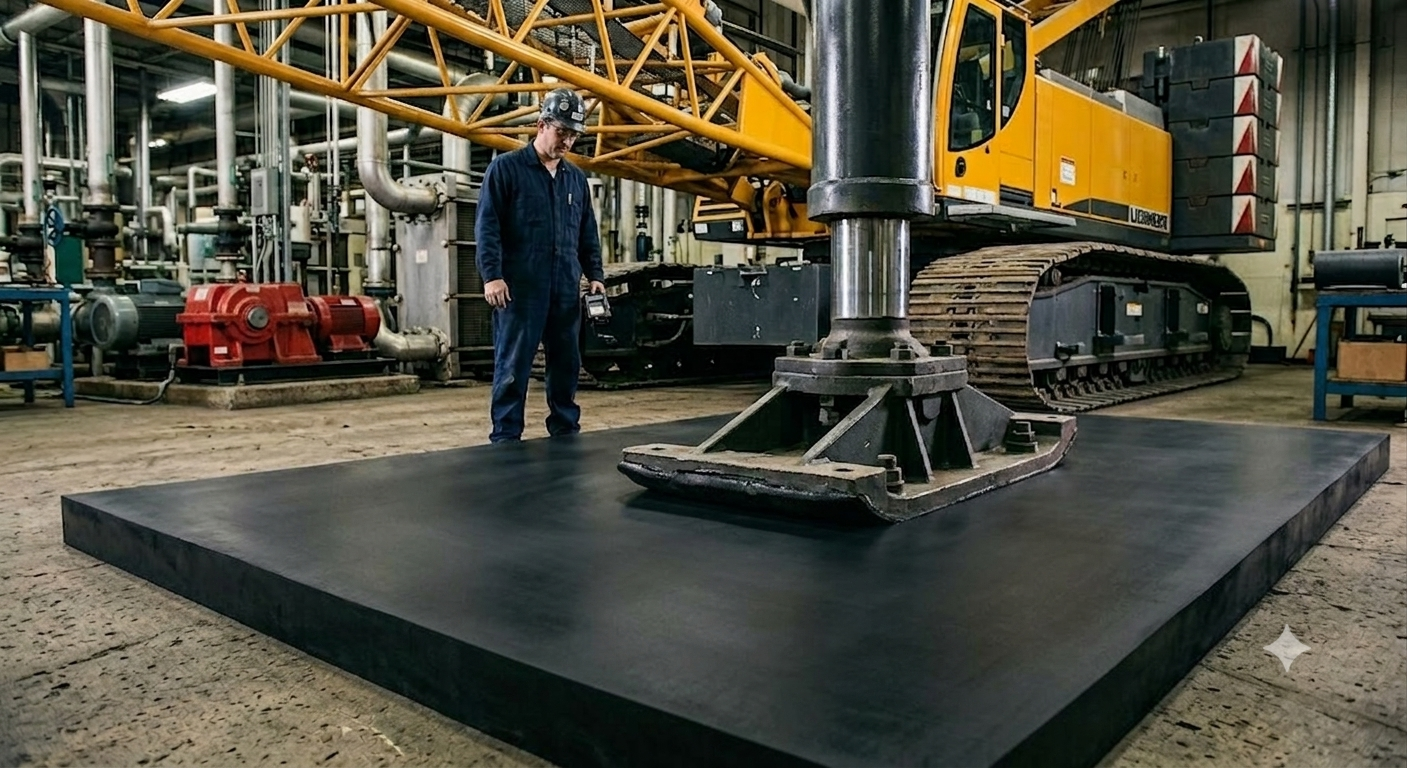

Fabric Reinforced Rubber Sheet is commonly used beneath heavy machinery and industrial equipment as a vibration isolation and load distribution pad.
The reinforced structure helps absorb vibration, reduce equipment movement, and distribute pressure more evenly across the contact surface. Even under long-term heavy loads, the sheet maintains its thickness and structural integrity, reducing the risk of compression collapse and extending its service life.

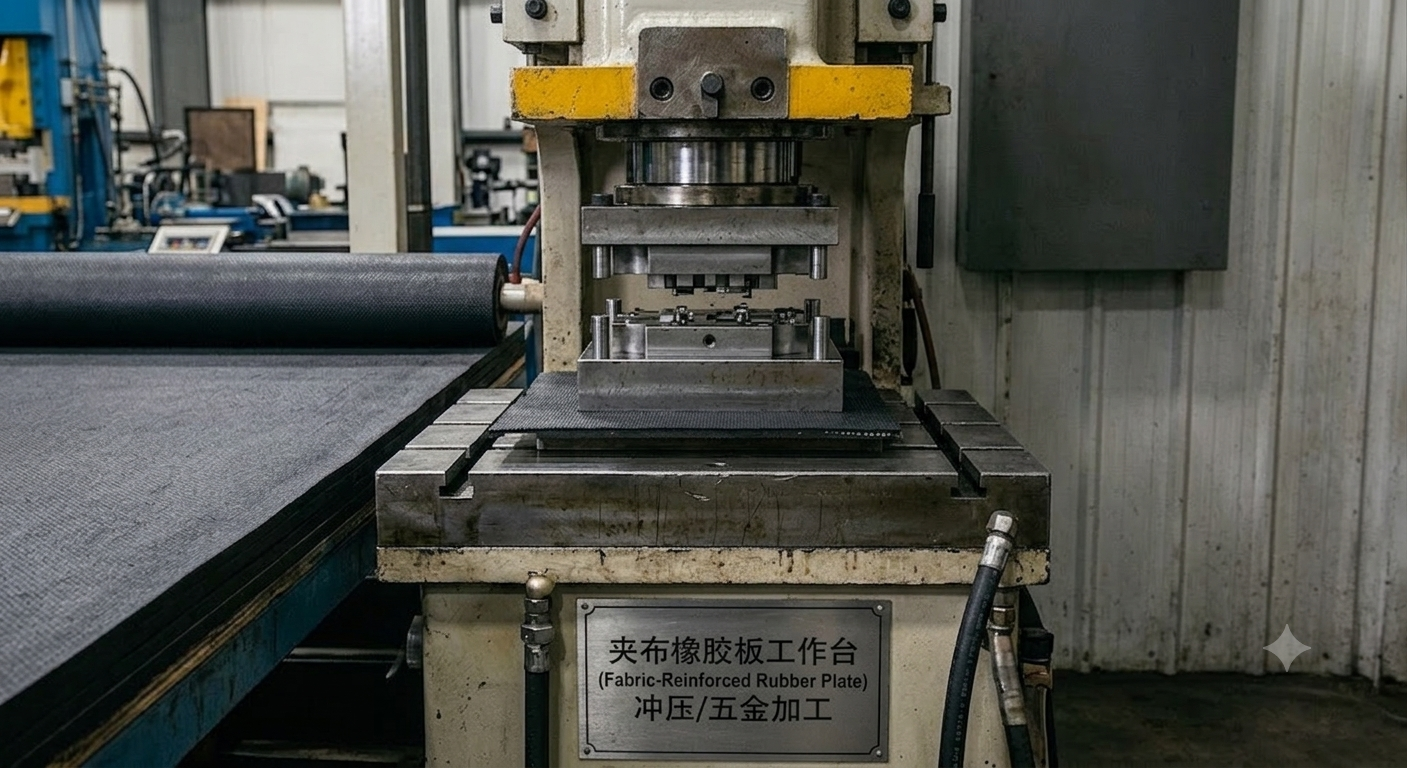

In stamping workshops and metal fabrication facilities, Fabric Reinforced Rubber Sheet is frequently used as a protective workbench covering.
The durable rubber surface helps prevent scratches and damage to finished workpieces while reducing operational noise. Thanks to its excellent wear resistance and tensile strength, the sheet can withstand continuous pulling, impact, and abrasion in demanding production environments.
Contact us to get a quick quote or a free samples
