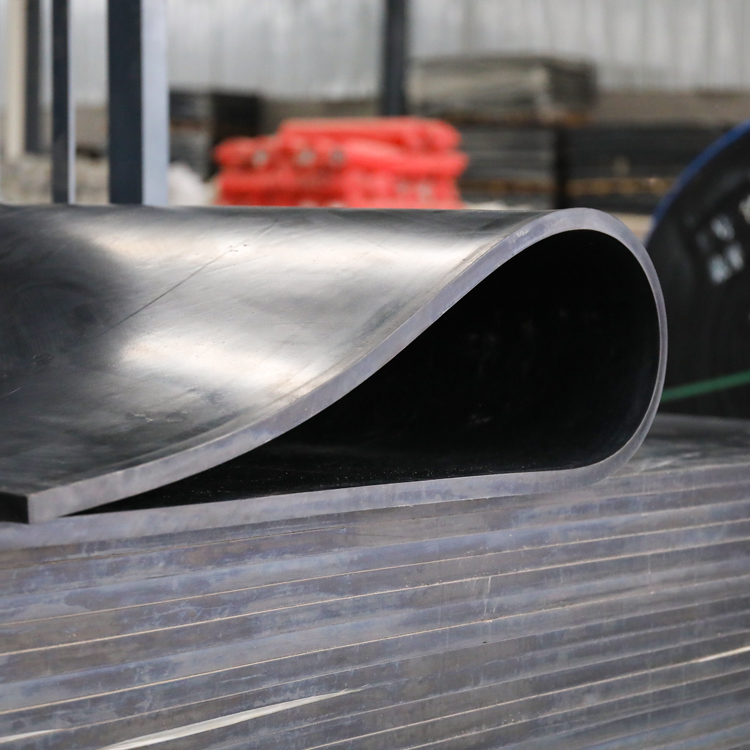

The Ballistic Rubber Sheet is a high-performance material engineered to deliver maximum safety, durability, and performance in shooting environments. Made from premium-grade rubber compounds, this sheet provides exceptional resistance to bullet penetration, noise reduction, and ricochet prevention.
When struck by a bullet, the surface instantly self-seals, leaving only a pin-sized hole. This innovative feature ensures a clean and safe shooting range with minimal maintenance. Whether for indoor or outdoor ranges, military training facilities, or ballistic laboratories, Qihang Rubber’s ballistic rubber sheets are trusted by professionals worldwide for their long-lasting reliability and safety performance.
One of the most impressive features of ballistic rubber is its instant self-sealing ability. Each sheet is designed to absorb the energy of a bullet while closing up the entry point immediately after impact.
This advanced self-healing mechanism prevents ricochets, reduces airborne dust and debris, and keeps the surrounding environment safer and cleaner. Unlike traditional backstops made of steel or wood, Qihang Ballistic Rubber maintains its structure and continues to perform efficiently even after thousands of rounds of ammunition.
In long-term testing, these sheets demonstrated consistent sealing performance across a wide range of calibers — from small handgun bullets to high-velocity rifle rounds — making them ideal for civilian, law enforcement, and military applications.
Ballistic rubber is built to withstand extreme conditions. It is formulated to resist cracking, shredding, and deformation under repeated ballistic impacts.
With a tensile strength of up to 21 MPa and elongation values exceeding 700%, this material maintains flexibility and resilience across various temperatures. Even in harsh environments from -40°C to +80°C, it delivers stable performance.
Its shock-absorbing structure dissipates kinetic energy from bullets, protecting back walls and target frames from damage. This durability not only enhances safety but also significantly reduces operational costs for shooting range operators, as replacement cycles are minimized.
Unlike hard backstops that can cause dangerous ricochets or lead fragmentation, ballistic rubber absorbs impact energy, trapping projectiles safely within the material. This design helps create a low-noise, low-dust shooting environment, reducing health hazards associated with lead particles.
Additionally, Qihang Rubber uses eco-friendly raw materials and a clean manufacturing process. The sheets are non-toxic, odor-free, and weather-resistant, making them suitable for use in both indoor and outdoor ranges without compromising air quality or performance.
These features align with modern environmental and safety standards, ensuring that your facility remains compliant with shooting range safety regulations.
One of the biggest advantages of Qihang Ballistic Rubber is its long service life and low maintenance requirement. Traditional materials such as wood or metal often require frequent replacement due to cracking or denting. In contrast, ballistic rubber offers years of continuous use with minimal upkeep.
Its resistance to weather, moisture, and UV exposure ensures that the sheets maintain their physical properties even when exposed to outdoor elements. Over time, this translates into significant cost savings and enhanced operational efficiency for shooting range owners and training centers.
Every shooting range has unique needs. That’s why Qihang Rubber offers a range of customization options for our ballistic rubber sheets, including different hardness levels, colors, and thicknesses.
Available in black, red, gray, and pink, and in thicknesses from 0.8mm to 25mm, these sheets can be produced in standard or made-to-order dimensions. We also provide installation support and technical guidance to ensure optimal performance in your specific shooting environment.
Each sheet is manufactured under strict quality control, ensuring consistent density, elasticity, and self-sealing capability across every batch.
| Property | Standard | R3528 | R4061 | R4068 | R3532 | R3517OZ |
|---|---|---|---|---|---|---|
| Color | — | Red | Pink | White | Black | Black |
| Hardness (Shore A) | ASTM D2240 | 38±3 | 36±5 | 36±3 | 36±3 | 36±3 |
| Specific Gravity (g/cm³) | ASTM D397 | 0.98±0.03 | 0.98±0.03 | 1.01±0.03 | 1.01±0.03 | 1.05±0.03 |
| Tensile Strength (MPa) | ASTM D412 | 19 | 19 | 21 | 18 | 18 |
| Elongation (%) | ASTM D412 | 720 | 730 | 690 | 720 | 650 |
| Resilience (%) | ASTM D5963 | 75 | 75 | 80 | 70 | 70 |
| Tear Strength (N/mm) | ASTM D624 | 40 | 30 | 37 | 40 | 35 |
| DIN Abrasion (mm³ @5N) | ASTM D5963 | 90 | 80 | 70 | 100 | 130 |
| Working Temperature (°C) | — | -30 to +70 | -30 to +70 | -30 to +70 | -30 to +70 | -40 to +80 |
Ballistic rubber is essential in safety-critical shooting and training environments, where projectile containment and sound absorption are top priorities. Common applications include:
Target Backing Curtains: Installed behind paper or steel targets to capture bullets safely.
Range Walls and Ceilings: Protect range structures and reduce ricochet risk.
Bullet Traps and Containment Chambers: Capture bullets completely and prevent metal splatter.
Police and Military Training Facilities: Enable high-volume live-fire exercises with safety and noise control.
Ballistic Test Chambers: Used in research labs for weapon testing, ammunition development, and armor testing.
Standard Sheet Sizes: 1.0m × 10m, 1.2m × 10m, 1.5m × 10m
Thickness Range: 0.8mm – 25mm
Available Colors: Black, Red, Gray, Pink
Custom Sizes: Made-to-order upon request
All sheets are produced with uniform density and strength, ensuring consistent performance across installations, whether used vertically as curtains or horizontally as bullet traps.
Qihang Rubber is a trusted manufacturer of industrial and ballistic rubber materials with years of experience in engineering, production, and export.
Our ballistic rubber products are developed through advanced vulcanization technology, ensuring high tear strength, consistent hardness, and superior rebound performance. We provide OEM and custom production, strict quality inspection, and responsive customer support to ensure that every project meets international safety standards.
Clients from over 40 countries choose Qihang Rubber for reliable, affordable, and innovative ballistic protection materials.
The Ballistic Rubber Sheet by Qihang Rubber represents the perfect balance between safety, strength, and performance. With its unique self-sealing ability, outstanding resilience, and cost-effective durability, it offers a long-term solution for shooting ranges, training centers, and ballistic testing environments.
If you are looking to upgrade your range safety systems, improve noise control, or enhance ballistic protection, Qihang Ballistic Rubber Sheets are the ultimate choice for dependable, long-lasting results.
